Solution Ultima 844/862/880 Installation Manual
RF3212 Radio Receiver Wiring Diagram

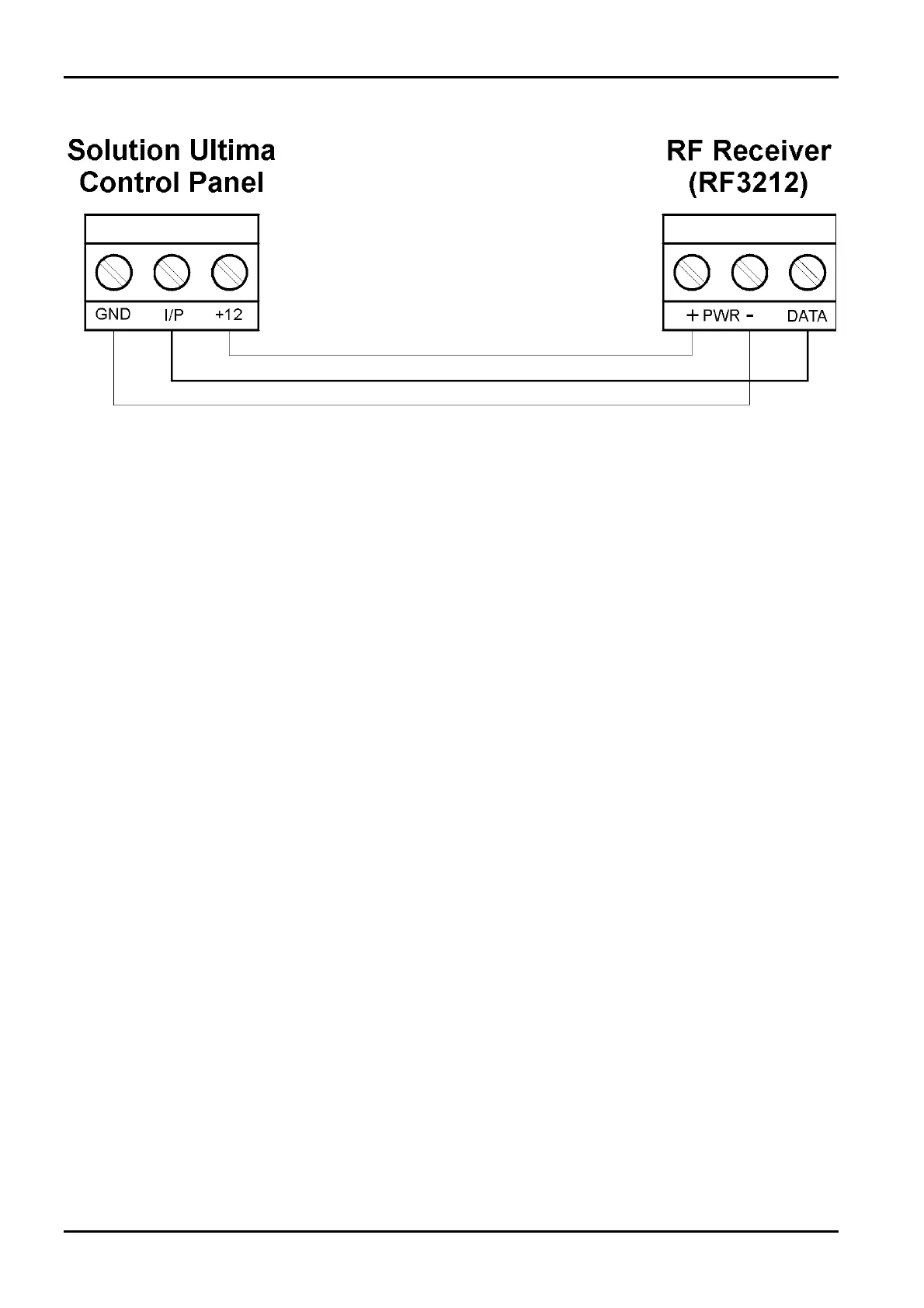

Figure 21: RF Receiver (RF3212) Wiring Diagram
Wiring and Power Up
- Remove power from the control panel.
- Connect the RF Receiver to the control panel as
shown above using 0.8mm (22-gauge) or larger
wire. Wire length should not exceed 300 meters
(1000 feet).
- Apply power to the control panel. The red LED at
the centre of the module will turn on.
Operation
The following describes the status of the module based on
the LED condition.
LED On – Module is functioning normally.
LED Off – Power failure has occurred or module is not
wired correctly.
LED Turns Off Momentarily – Module acknowledged
receiving an RF signal from a remote RF device.
