28 Solution Ultima 844/862/880 Installation Manual
CP5 Eight Zone LED Codepad
The codepad is the communications interface between you and your alarm
system. The codepad allows you to issue commands and offers both visual
and audible indications that guide you through the general operation.
The codepad incorporates numerous indicators. There are
ZONE indicators
that are used to show the condition of each zone and four others for general
status. The following is a list of situations and the relevant indications that
will be seen.

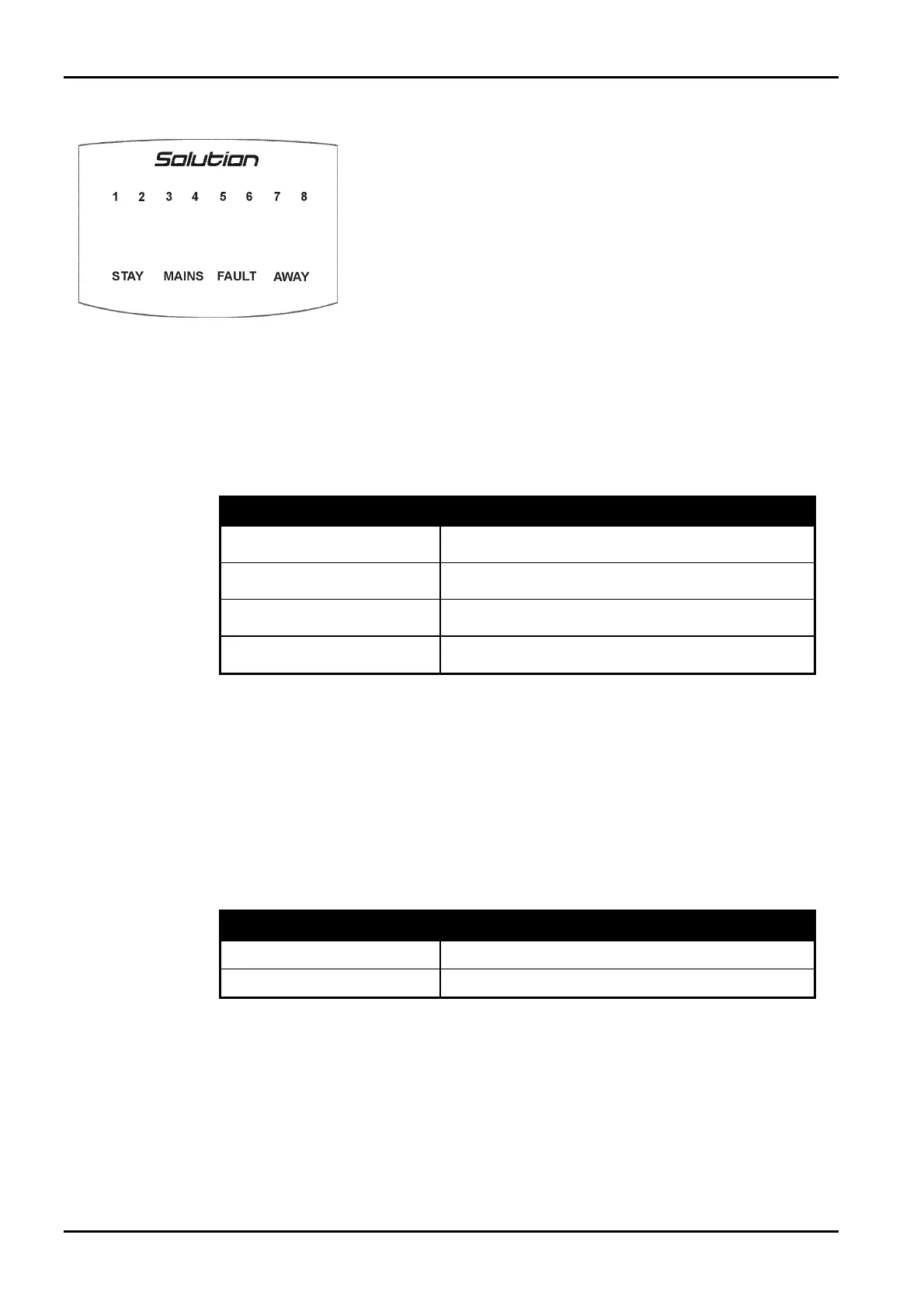

Figure 1: CP5 Eight Zone LED Codepad
(CP508)
Zone Indicators
The ZONE indicators are used to display the status of the zones. The following table lists the various
circumstances that the indicators will display (i.e. Zone Sealed, Zone Unsealed).
Indicator Definition
On
Zone Is Unsealed
Off
Zone Is Sealed
Flashing Fast
(0.25 Sec On – 0.25 Sec Off)
Zone Is In Alarm Condition
Flashing Slow
(1 Sec On – 1 Sec Off)
Zone Is Manually Isolated
Table 5: Zone Indicators
AWAY Indicator
The AWAY indicator is used to display that the system is armed in AWAY Mode. The AWAY indicator
will also flash in unison with the
STAY indicator when Installer’s Programming Mode or Master Code
Functions are used.
Refer to page 40 for more information on the different methods on arming the system in AWAY
Mode.
Indicator Definition
On
System Is Armed In AWAY Mode
Off
System Is Not Armed In AWAY Mode
Table 6: AWAY Indicator
ISSUE162.DOC Electronics Design and Manufacturing Pty Limited
