Solution Ultima 844/862/880 Installation Manual
Example
In this example, zones 1, 2, 3 and 4 have been allocated to Area 1 to appear as zones 1, 2, 3 and 4.
Zones 1, 5, 6, 7 & 8 have been allocated to Area 2 to appear as zones 1, 5, 6, 7 and 8. Programming
the same zone into more than one area indicates that the zone will operate as a common zone.

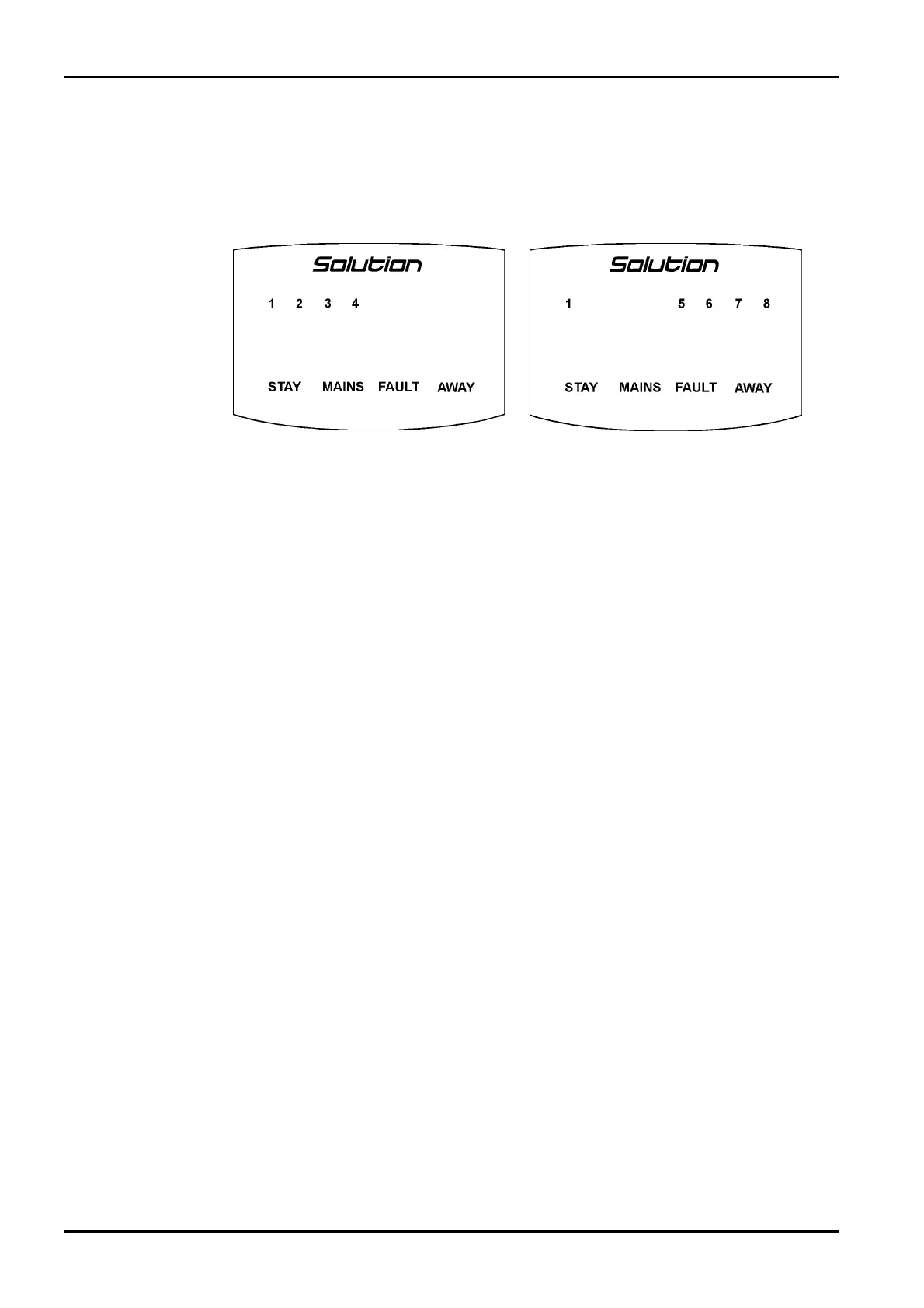

Figure 14: Area 1 Codepad Display Figure 15: Area 2 Codepad Display
Area 1 Zone Allocations Area 2 Zone Allocations
LOCATION 434 – 441 LOCATION 442 – 449
12340000 10005678
