Step 6
Verify front and rear anges on each bracket are installed in the correct rack posion.
Step 7
Verify the installed brackets on the 19-inch, 4-post rack are spaced 440 mm apart and that brackets are level, as
shown in the following gure.
Note: Conrm the bracket spacing is correct at the front and rear of the rack. Use the bolts on the anges to
adjust the spacing and lt of the brackets.
Inner Width: 440 mm
Front View
s8102bo_1
Figure 49

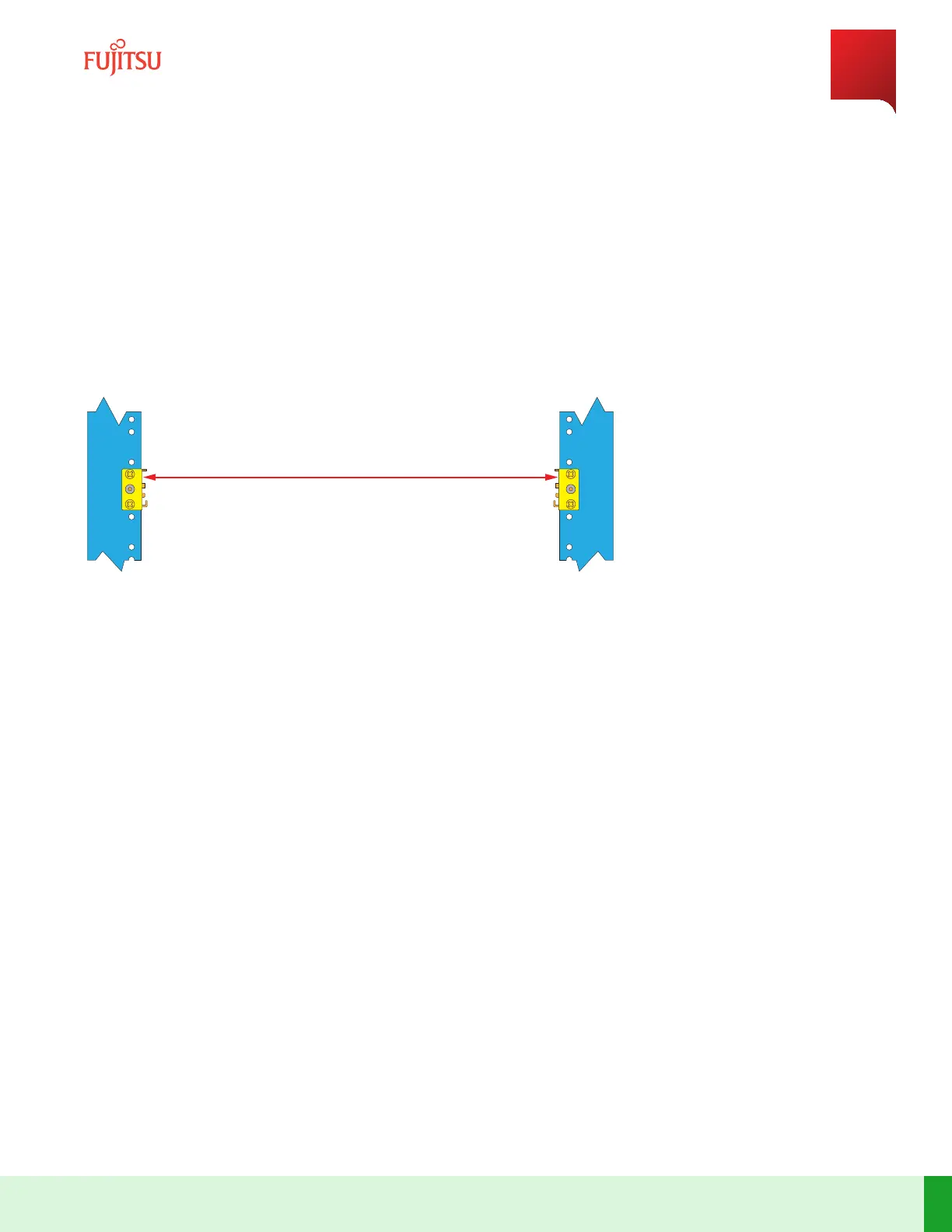

Bracket Spacing 19-Inch, 4-Post Rack
Step 8
Tighten all bolts completely on each bracket.
Note: Each bracket is mounted to the rack using four bolts, two in the front and two in the rear.
Step 9
Tighten the ange screws on both the le and right brackets, as shown in the following gure.
Note: Do not use excessive force to ghten the nuts.
Equipment Installation
Install 19-Inch, 4-Post Rack Rail Kit
122
Release 19.1.1 · Issue 1.1, May 2021
Fujitsu and Fujitsu Customer Use Only
