2.3.1
4x16 Splitter/Coupler PIU
Up to two 3PS2 splier/coupler PIUs [PIL1-3PS2] can be installed in each L110 (BDL1-3B11) Opcal Mux Base
blade. Each PIL1-3PS2 PIU provides client ports for up to 16 add/drop narrowband channels at 100 Gb/s or
higher (including 150 and 200 Gb/s). The following gure shows the front view of the PIL1-3PS2.
T R T R
C16
T R T RT R T RT R T R
C9 C10 C11 C12 C13 C14 C15
RRT T
E4E3
T R
C8
TRT R TRTRTRR T R T
C1 C2 C3 C4 C5 C6 C7
R T R T
E2
E1
F/S
E
C
FC95453PS2 Iss. 02
FNC001697_Rev_01

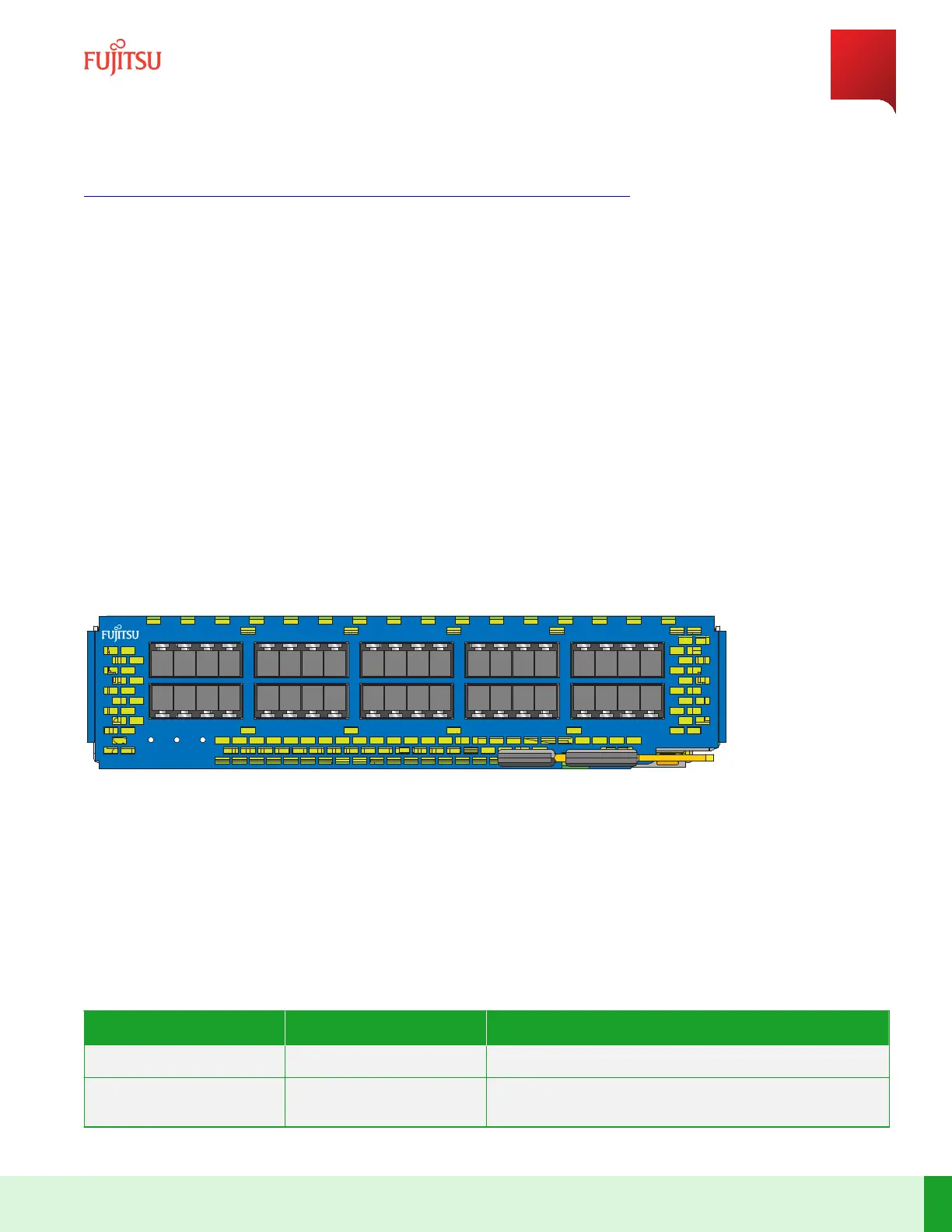

Figure 19
Front View of PIL1-3PS2
Note: Issue 04 and earlier units have opcal port direcon labels O/I instead of T/R.
Connector Descripons
Table 23
Connector and Funcon
Connector Connector Type Funcon
C1…C16 LC with shuer Client connecon to transponder/muxponder
E1 LC with shuer Add/drop connecon to client port (C1…C9) of L100 Blade on
ROADM degree 1
Unit Description
L110 Blade
74
Release 19.1.1 · Issue 1.1, May 2021
Fujitsu and Fujitsu Customer Use Only
