Provision L160 Tributary Blade
Note: The L160 Blade must be provisioned aer provisioning the L100 Main blade ports and before provisioning
the L100 Main blade OTS interface.
Danger: L160 Raman blade emits very HIGH power light.
Danger: Never look into any ports of Raman blade directly. Never look into the end of a ber, ber cord,
or ber pigtail connected with any ports of Raman blade. Permanent eye damage or blindness can occur
quickly when laser radiaon is present.
Danger: Never expose bare skin to light from E1 port of Raman blade. Never bring bare hands near the
surface of the connector of E1 port and near the ber which is connected with E1 port of Raman blade.
Danger: All ports and the surface of a ber connector should be cleaned thoroughly. If dust exists on the
surface of a ber connector or on the ports of Raman blade, it is burnt and melted due to the high power
light. The burning or melng acon causes damage to the ber connector or to the blade.

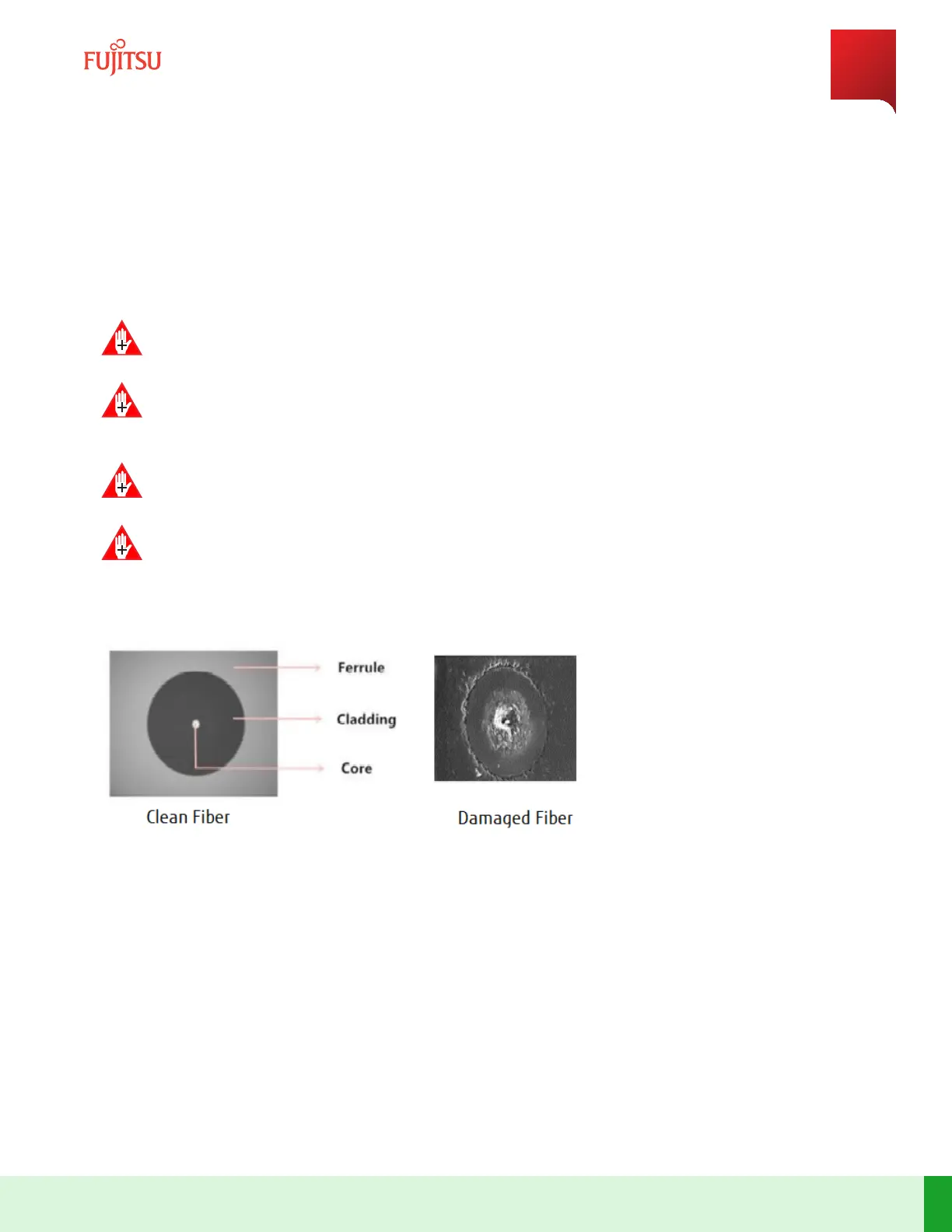

Figure 98
Clean and Damaged Fiber
Note: L100 Blade Issue 14, FC95453R11-I14, and later blade must be used with L160 Raman blade.
Step 1
Provision the L160 tributary blade.
Command:
% set eqpt shelf 101 type BDL1-3M21 shelf-mode NORMAL shelf-role TRIB admin-status
up
Step 2
Provision the Fan unit slots.
Initial System Turn Up
Provision L160 Tributary Blade
197
Release 19.1.1 · Issue 1.1, May 2021
Fujitsu and Fujitsu Customer Use Only
