L110 Blade
In this secon:
2.3.1 4x16 Splier/Coupler PIU
The L110 (BDL1-3B11) Opcal Mux Base blade houses up to two 4x16 splier/coupler (PIL1-3PS2) PIUs. Each
PIL1-3PS2 provides client ports for up to 16 add/drop 100 Gb/s or higher (including 150 and 200 Gb/s) channels.
A ller panel is available for any unlled PIU slots.
The number of BDL1-3B11 blades that can be installed depends upon the ROADM conguraon.
The following table lists the number of BDL1-3B11 blades can be installed for 1- to 4-degree ROADM
conguraons.
Table 20
Number of Blades for up to Four Degrees of ROADM
Degrees of ROADM Maximum Number of PIL1-3PS2 PIUs Add/Drop Channels
1 6 96
2 8 128
3 7 112
4 6 96

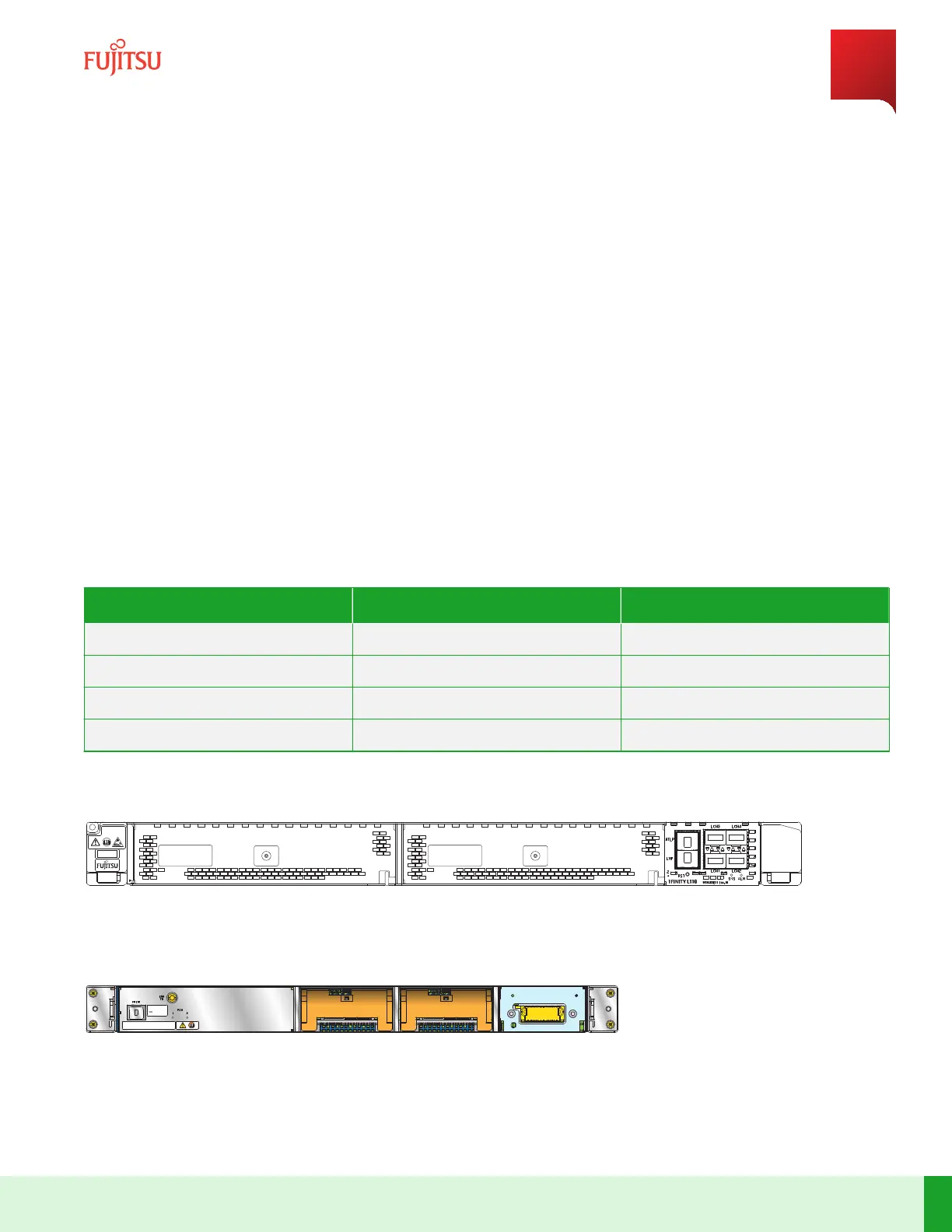

The following gures show front and rear views of the Opcal Mux Base blade.
FG
ESD
1
FNC000978_Rev_01
Figure 17
Front View of L110 Opcal Mux Base Blade
INPUT RATING:
-40 TO -57V
FUSED AT 15A
,10A MAX，
s8104ai_1
Figure 18
Rear View of L110 Opcal Mux Base Blade
Unit Description
L110 Blade
71
Release 19.1.1 · Issue 1.1, May 2021
Fujitsu and Fujitsu Customer Use Only
