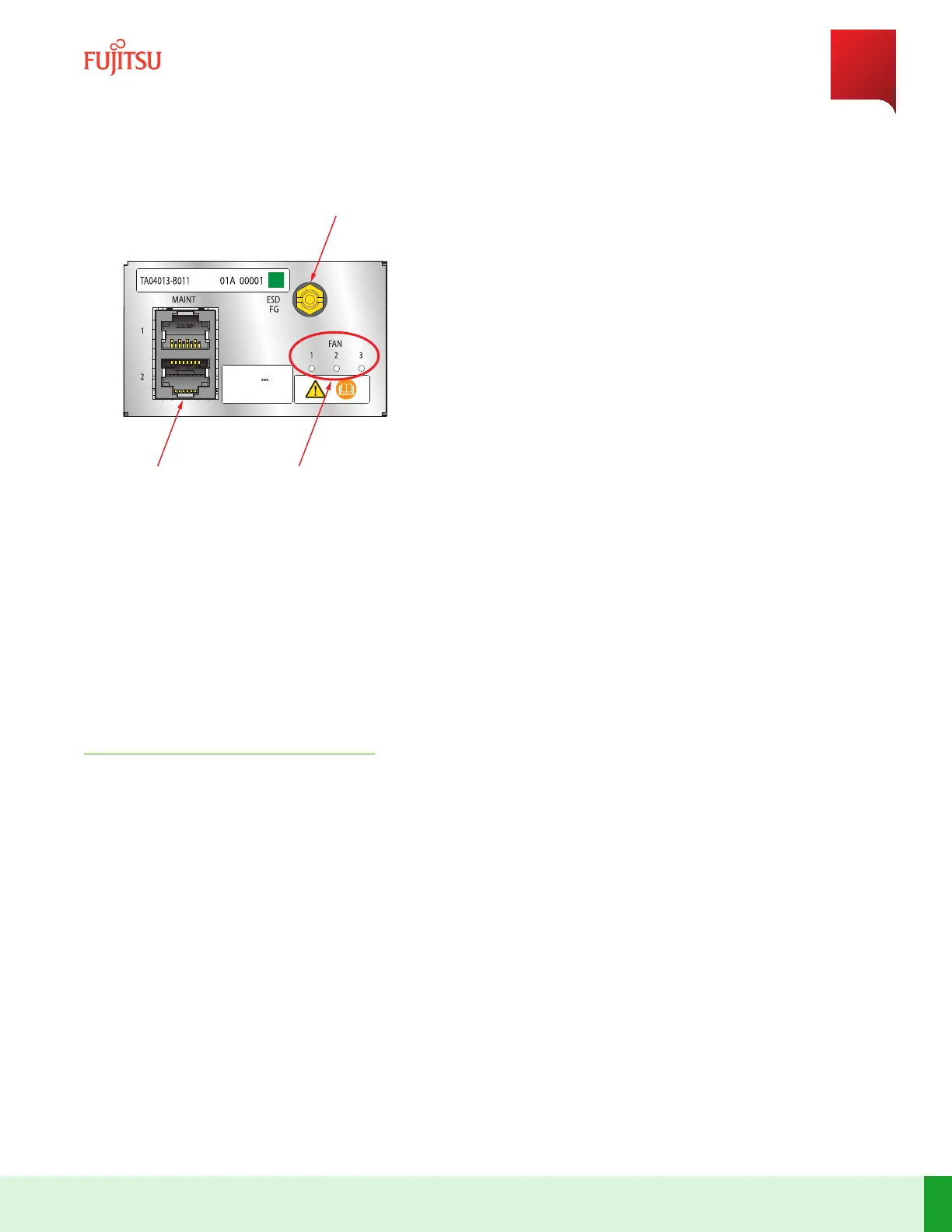

Electrostatic Discharge (ESD)
Wrist Strap Grounding Post
Maintenance Ports
(Factory use only: do not use.)
FAN LEDs
INPUT RATING:
-48V ---.
20A MAX.
FUSED AT 25A
s8102ax_2
Figure 79
FAN LEDs
Step Result:
When the Fan unit is inserted, the fans should start running and the FAN LEDs on rear-le side of the blade lights
green. The Fan unit has two or three FAN LEDs, depending on the blade type.
Note: The FAN LEDs change to green if power is applied to the blade.
✓ This task is complete.
Addional Instrucons:
Perform the same procedure, as needed, to insert addional Fan units into the remaining Fan unit slots.
Equipment Installation
Install Fan Unit
147
