Fujitsu 1FINITY L100 - Page 372

Fiber Management Arms
s8102cs_1

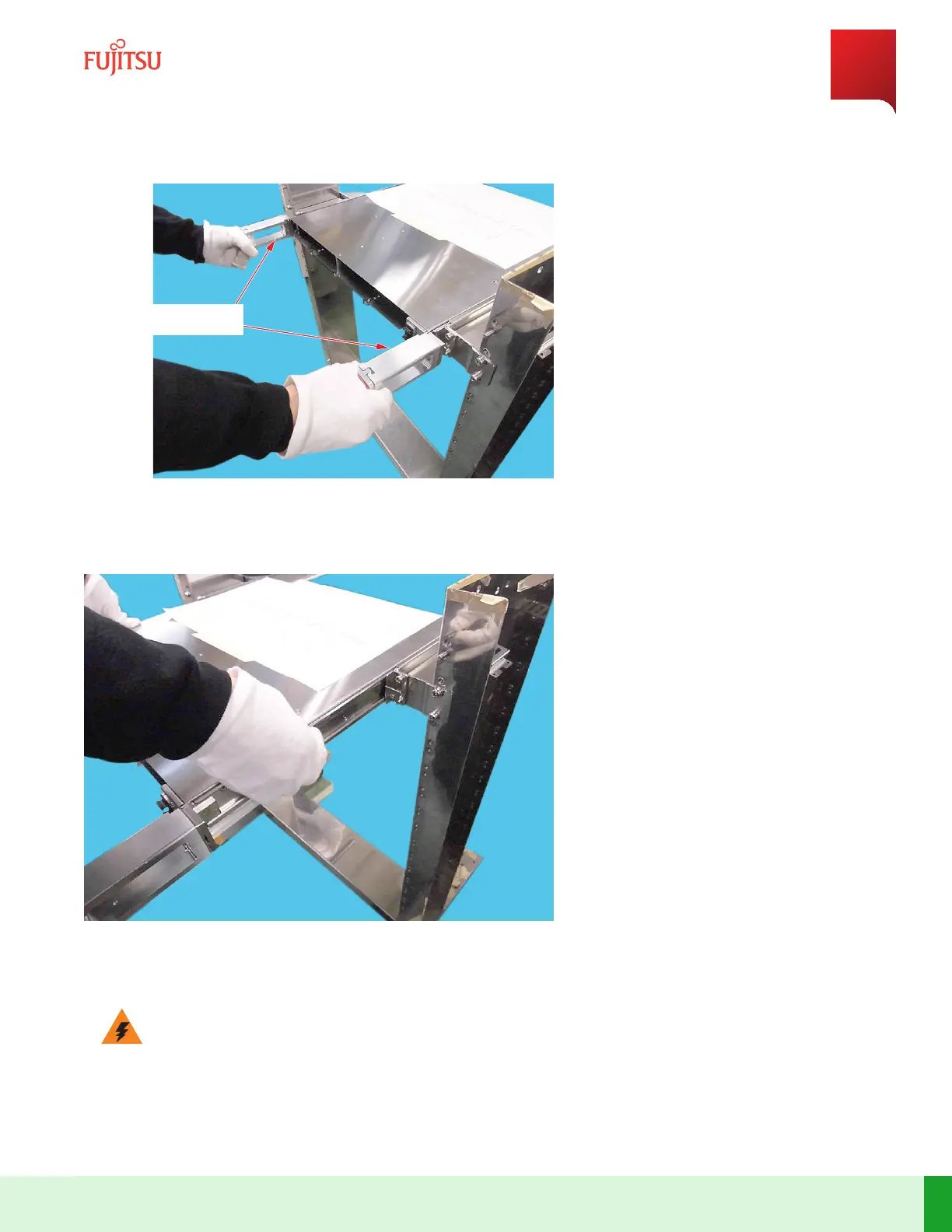

Figure 115
Pulling Blade from Rack
s8102cu_1
Figure 116
Locked Posion
Warning:
The blade is heavy; always use two hands and be prepared to support the enre weight of the
blade aer releasing the blade from the locked posion.
Step 8
Find the locking tabs on each side of the blade.
