Step 2
Remove the Fan unit by performing the following substeps:
a) Locate the release lever on the lower le-side corner of the Fan unit to be removed.
b) Press the release lever to the right, and carefully and slowly pull on the cross bar to remove the Fan unit from
blade.
Release Lever
Cross Bar

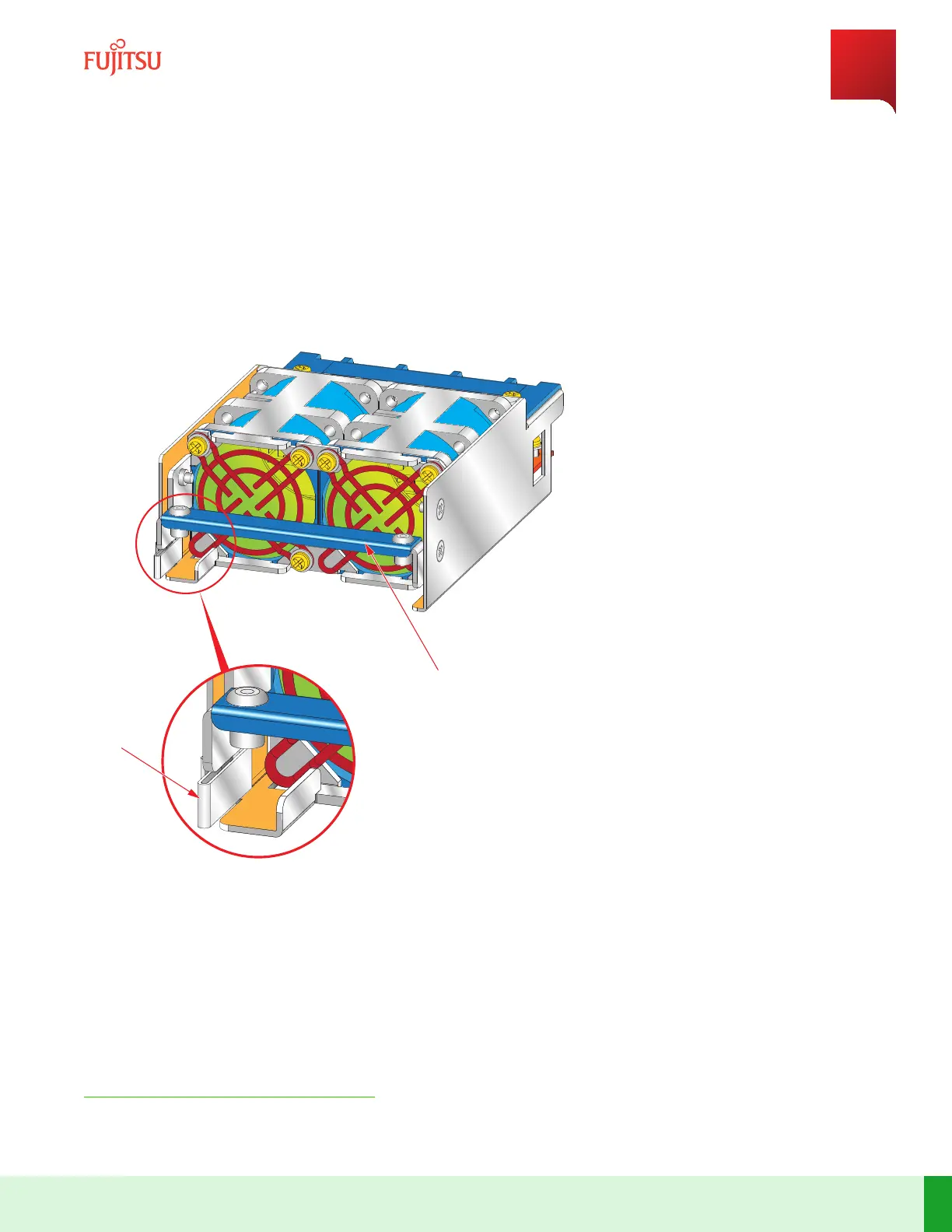

s8102cp_1
Figure 171
Removing Fan Unit
Step 3
Set the Fan unit aside for paperwork processing, if required.
Step 4
If a new Fan unit is installed in the same posion, follow the appropriate Fan installaon procedure.
✓ This task is complete.
