CX2550/60/70 M4 Upgrade and Maintenance Manual 129
Expansion cards and OCP mezzanine cards
6.3.1.2 Mounting an expansion card to SXM2 riser card (L) type 2

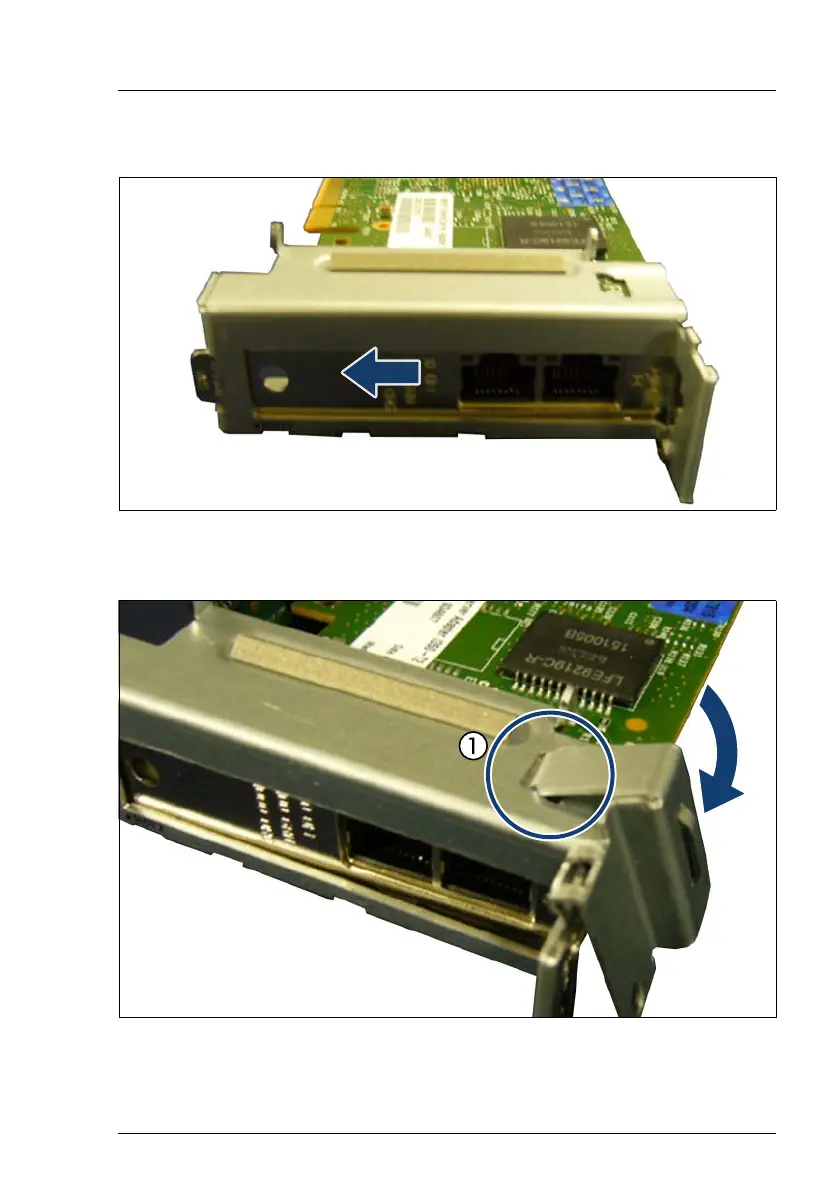

Figure 34: Mounting a controller to the riser module
Ê Insert the expansion card to the PCI cage.
Figure 35: Mounting a controller to the riser module
Ê Attach the gasket and insert it into the hole of the PCI cage (1).
