154 Upgrade and Maintenance Manual CX2550/60/70 M4
Expansion cards and OCP mezzanine cards
– Disconnect the SAS cables from the SAS RAID controller.
– Remove the SAS RAID controller from its slot, see section "Removing
expansion cards" on page 122.
6.4.5.2 Removing the TFM

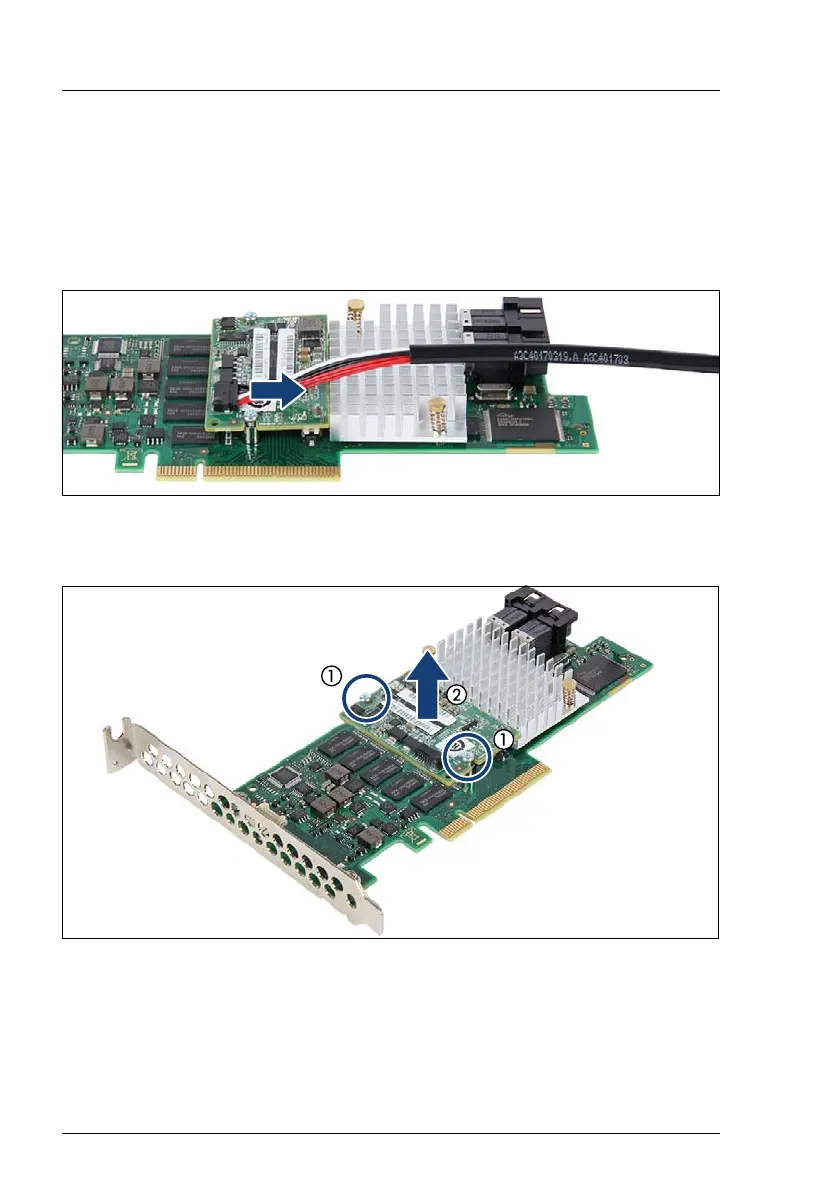

Figure 59: Disconnecting the FBU adapter cable from the TFM
Ê Disconnect the FBU adapter cable from the TFM.
Figure 60: Removing the TFM
Ê Remove the two screws (1).
Ê Remove the TFM (2).
I Note for replacing the TFM:
The two spacer bolts can remain on the RAID controller.
