CX2550/60/70 M4 Upgrade and Maintenance Manual 337

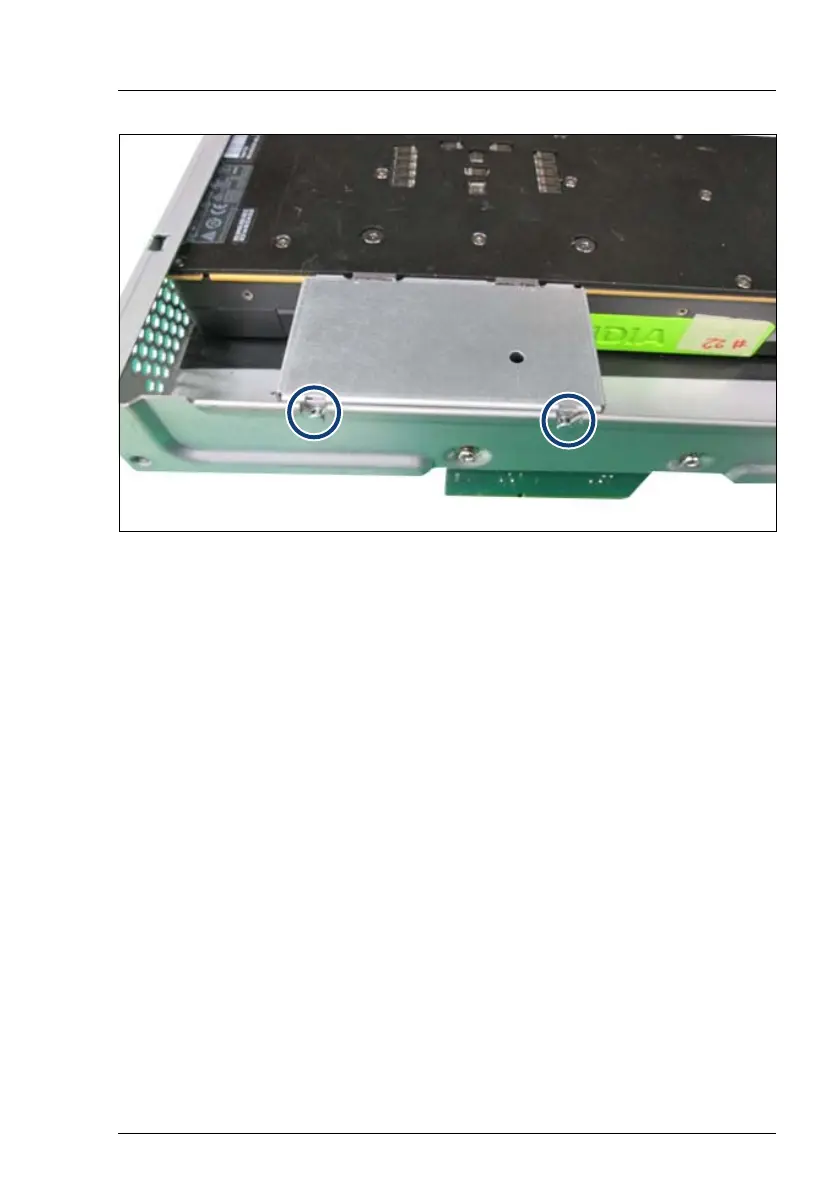

Figure 221: Installing the spacer
Ê Insert the spacer as shown, so that the hooks engage in the recesses (see
circles).
10.5.3 Concluding steps
Perform the following procedures:
Ê "Installing the server node in the server enclosure" on page 67
Ê If applicable, connect all external cables to the server node.
Ê "Updating or recovering the system board BIOS and iRMC" on page 77 (if
applicable)
Ê "Controls and indicators on the server node" on page 448
Ê "Enabling SVOM boot watchdog functionality" on page 88
