CX2550/60/70 M4 Upgrade and Maintenance Manual 65
Basic hardware procedures
4.15 Installing the GPGPU / SXM2 extension tray
I This section describes how to install the GPGPU extension tray. The
SXM2 extension tray is installed in the same way.

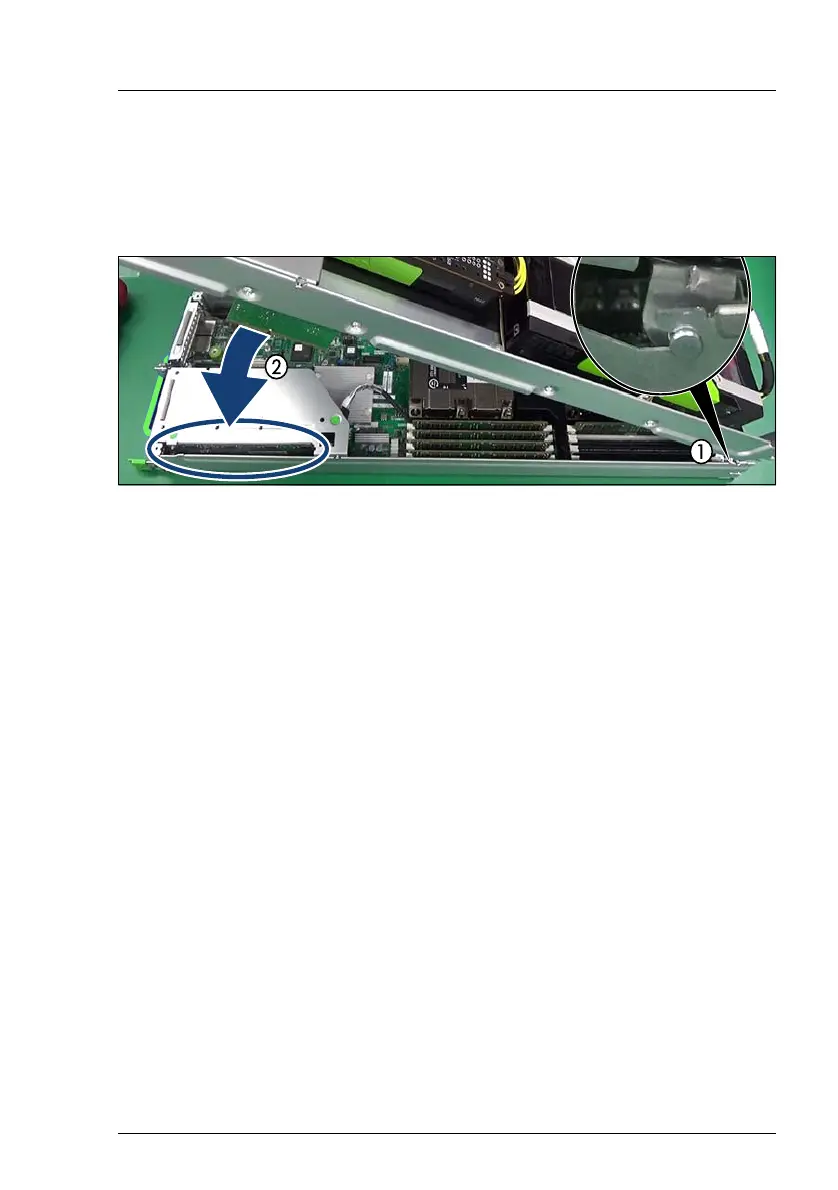

Figure 21: Installing the GPGPU extension tray (A)
– Plug the GPGPU extension tray hooks in the recesses of the CX2570
chassis (1).
– Swivel the GPGPU extension tray down. (2).
V CAUTION
Be careful when plugging in the GPGPU extension risers (see oval).
