CX2550/60/70 M4 Upgrade and Maintenance Manual 287
System board and components
I For detailed information on how to access the BIOS and modify
settings, see the corresponding BIOS Setup Utility reference manual.
Ê "Suspending BitLocker functionality" on page 71
Ê "Shutting down the server node" on page 50
Ê If applicable, remove all external cables from the server node.
9.3.2.2 Removing the TPM
Ê "Removing the system board" on page 309
Ê Lay the system board on a soft, antistatic surface with its component side
facing down.

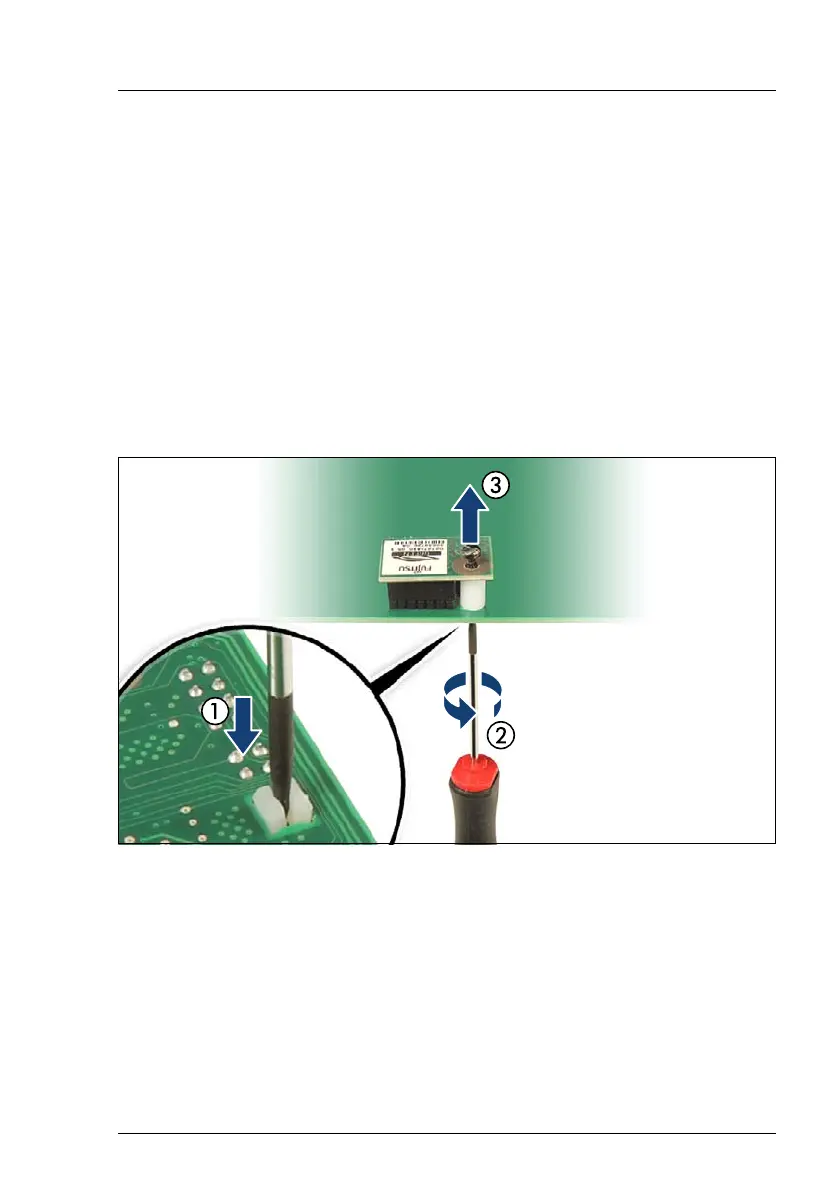

Figure 179: Removing the TPM screw (example)
Ê Locate the slotted lower end of the TPM screw (1).
Ê Carefully loosen the TPM screw using a thin slotted screw driver (e.g.
watchmaker's screw driver) or the dedicated TPM screw driver (for
Japan) (2).
V CAUTION!
Ensure to turn the screw clockwise in order to remove it!
