58 Upgrade and Maintenance Manual CX2550/60/70 M4
Basic hardware procedures
4.6 Removing the riser module

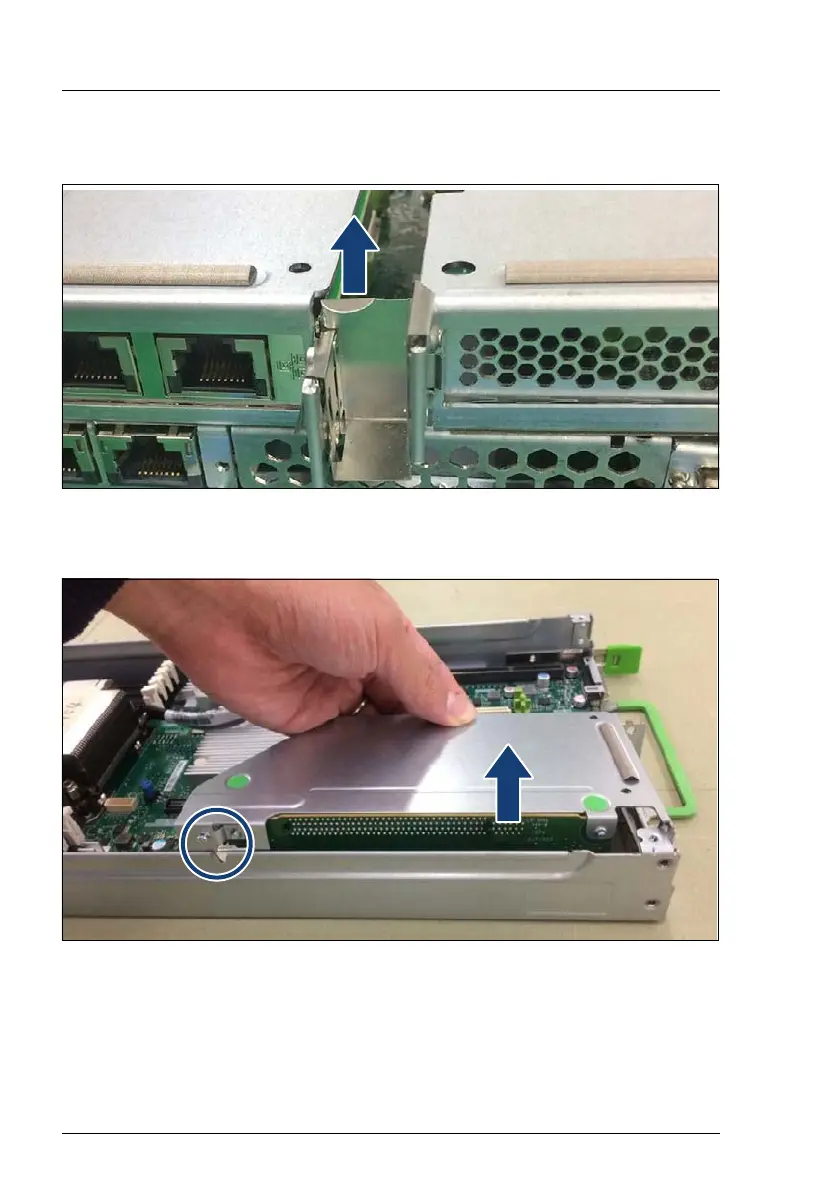

Figure 10: Removing the gasket between the riser modules
Ê Remove the gasket between the riser modules (see arrow).
Figure 11: Removing the riser module
Ê Lift up the riser module straight on and remove the riser from the slot.
I Remove the riser module on the right side accordingly.
