408 Upgrade and Maintenance Manual CX2550/60/70 M4

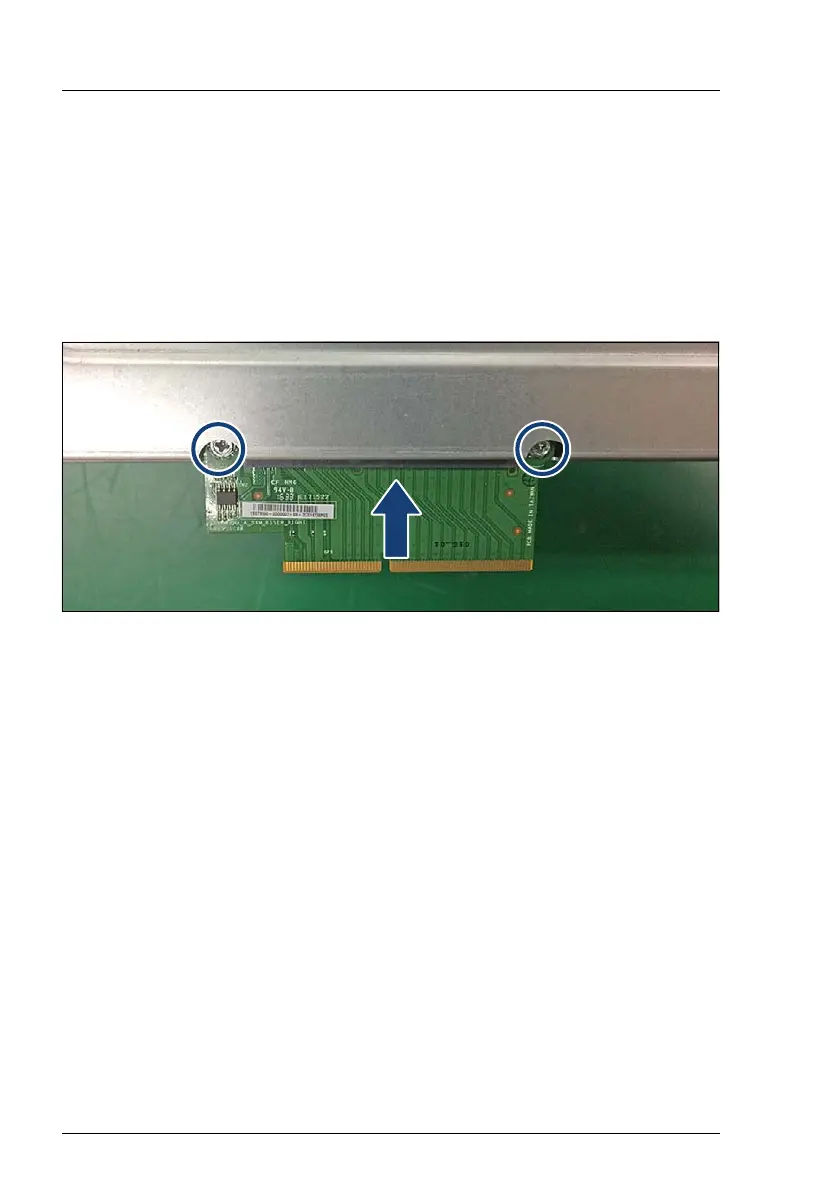

Ê Place the SXM2 tray on the left side so that the system board connectors of
the risers are not damaged.
Ê Remove two screws (see circles).
Ê Unplug the riser from the SXM2 base board.
11.4.3 Installing the SXM2 riser (R)
Figure 298: Installing the riser (R)
Ê Place the SXM2 tray on the left side so that the system board connectors of
the risers are not damaged.
Ê Plug the riser in the connector of the SXM2 base board.
Ê Secure the riser with two screws (see circles).
11.4.4 Concluding steps
Perform the following procedures:
Ê "Installing the GPGPU / SXM2 extension tray" on page 65
Ê "Installing the server node in the server enclosure" on page 67
Ê If applicable, connect all external cables to the server node.
Ê "Controls and indicators on the server node" on page 448
Ê "Enabling SVOM boot watchdog functionality" on page 88
