8.3.3 Removing the CPU type 1

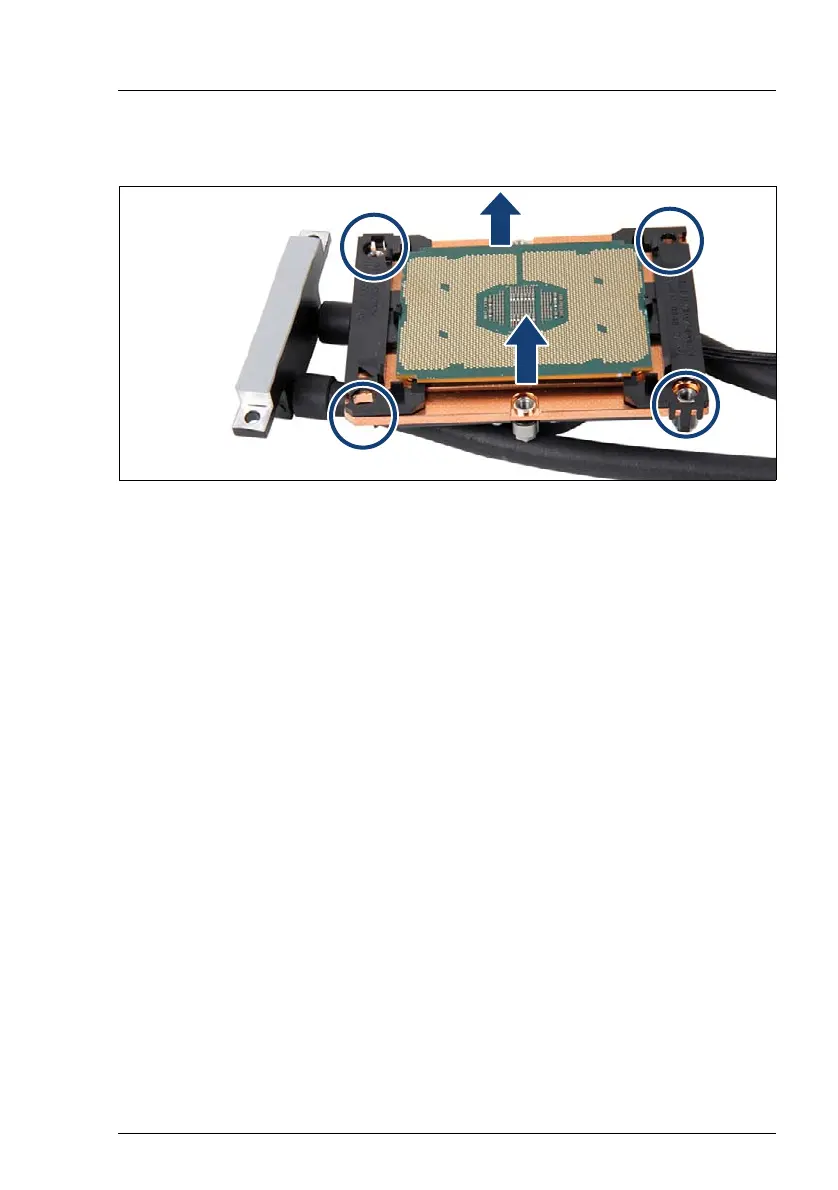

Figure 124: Removing the CPU frame
Ê Release the four hooks (see circles).
Ê Carefully twist the CPU back and forth to detach the CPU frame from the
heat sink (see arrows).
I This may be necessary due to the adhesive quality of the thermal
paste located between the heat sink and CPU.
