206 Upgrade and Maintenance Manual CX2550/60/70 M4
8.1 Basic information
8.1.1 Supported CPUs
– CPU type 1: Intel
®
Xeon
®
Processor Scalable Family (Platinum, Gold,
Silver, Bronze) (xxxx, xxxxM, xxxxT)
– CPU type 2: Intel® Xeon® Processor Scalable Family (Platinum, Gold,
Silver, Bronze) (xxxxF)
– Socket type: Socket-P1
– CPU type 2 is installed only in the CPU1 slot.
8.1.2 CPU locations

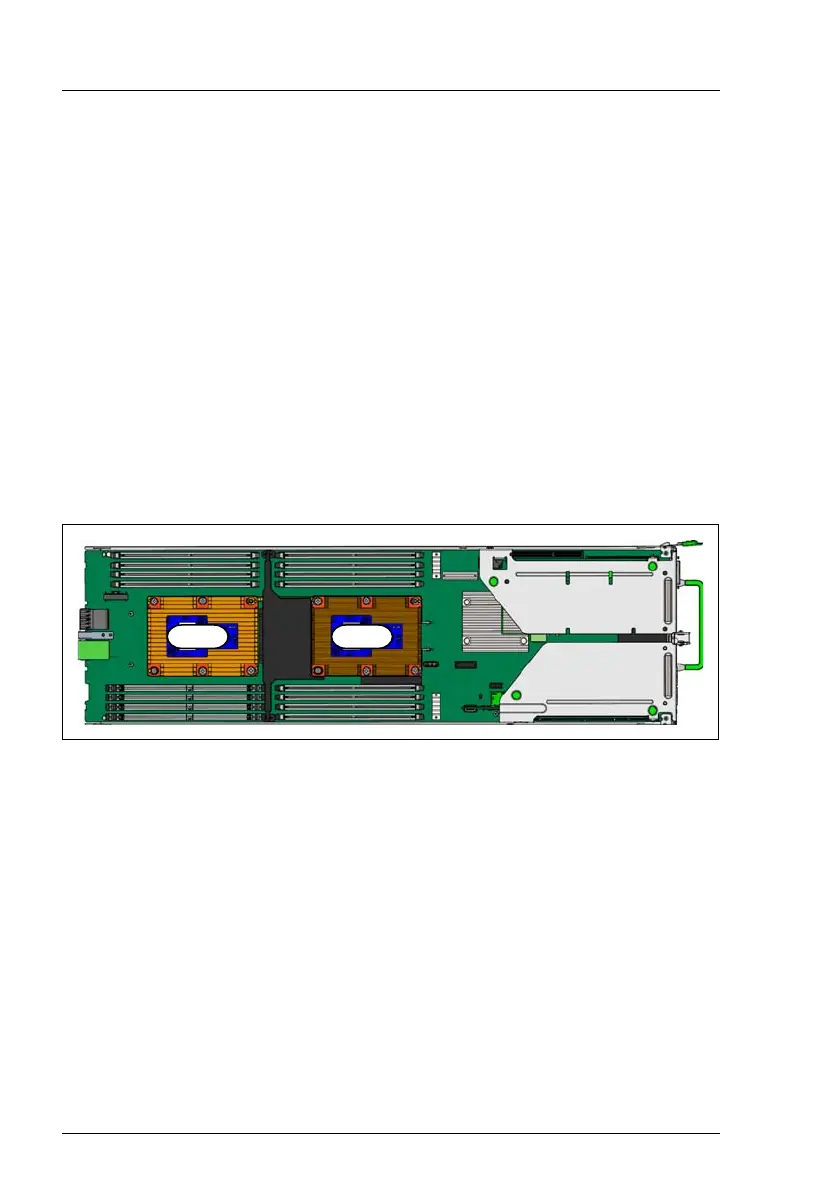

Figure 94: CPU slots on system board (CX2550, CX2560, CX2570)
