CX2550/60/70 M4 Upgrade and Maintenance Manual 299
System board and components

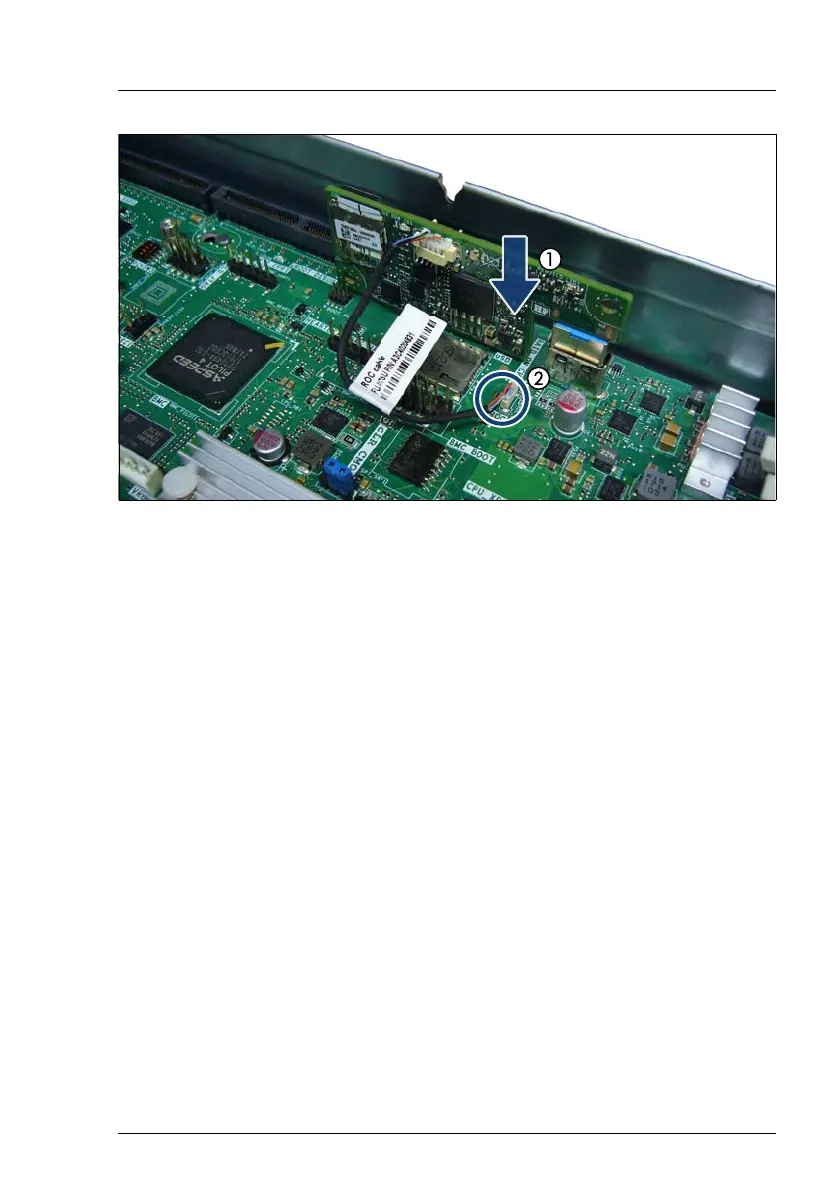

Figure 188: Installing the Dual microSD 64GB Enterprise
Ê Insert the Dual microSD 64GB Enterprise into the connector "RAID ON
CHIP" on the system board (1).
Ê Connect the cable to the connector "ROC" on the system board (2).
For the cable plan see chapter "Appendix B" on page 375.
9.5.1.3 Concluding steps
Ê Install the left riser module, see section "Installing the riser module" on
page 55.
Ê "Installing the server node in the server enclosure" on page 67
Ê If applicable, reconnect all external cables.
Ê "Controls and indicators on the server node" on page 448
Ê "Enabling SVOM boot watchdog functionality" on page 88
