252 Upgrade and Maintenance Manual CX2550/60/70 M4
8.3.7.3 CPU / RAM loop type 1: Installing the flexible tubes (CX2550 M4
/ CX2560 M4) Type 2

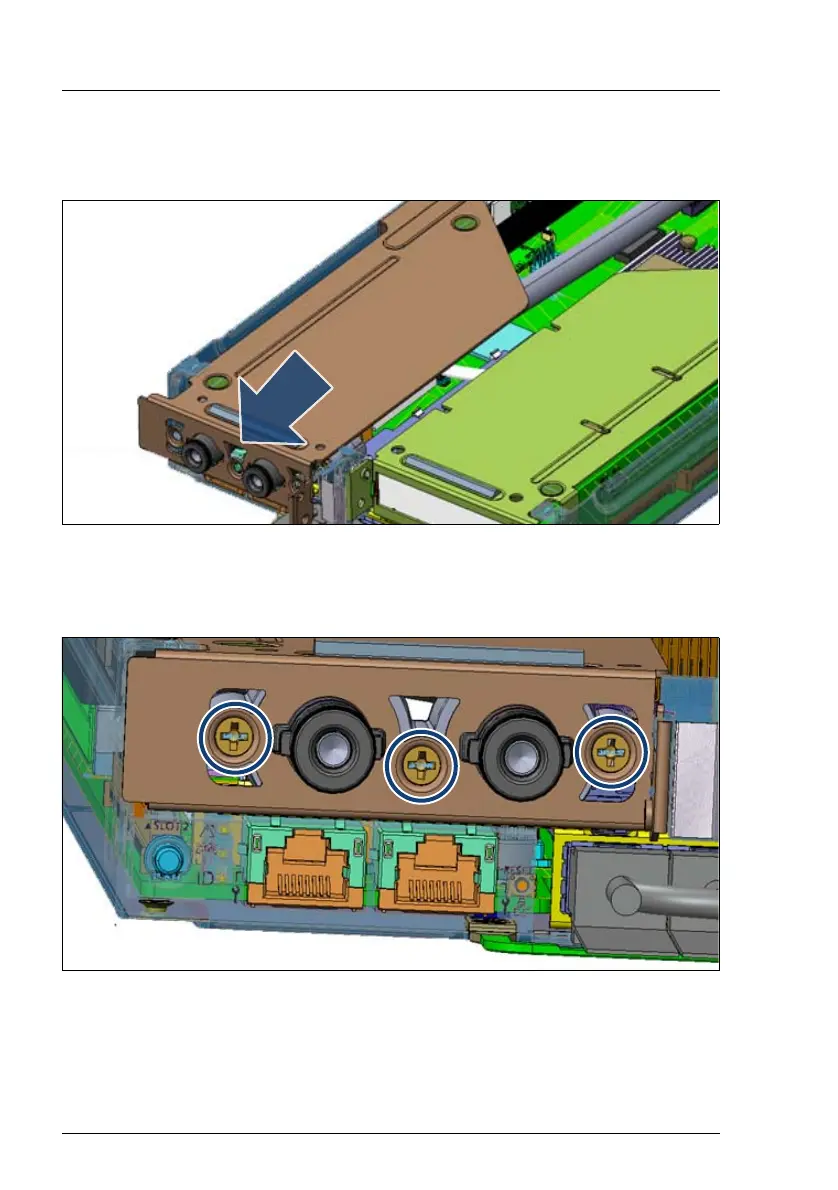

Figure 153: Installing the LC flexible tubes riser
Ê Push both flexible tubes through the holes of the LC bracket (see
arrow).
Figure 154: Installing the LC metal plate
Ê Fasten the LC bracket with three screws (see circles).
