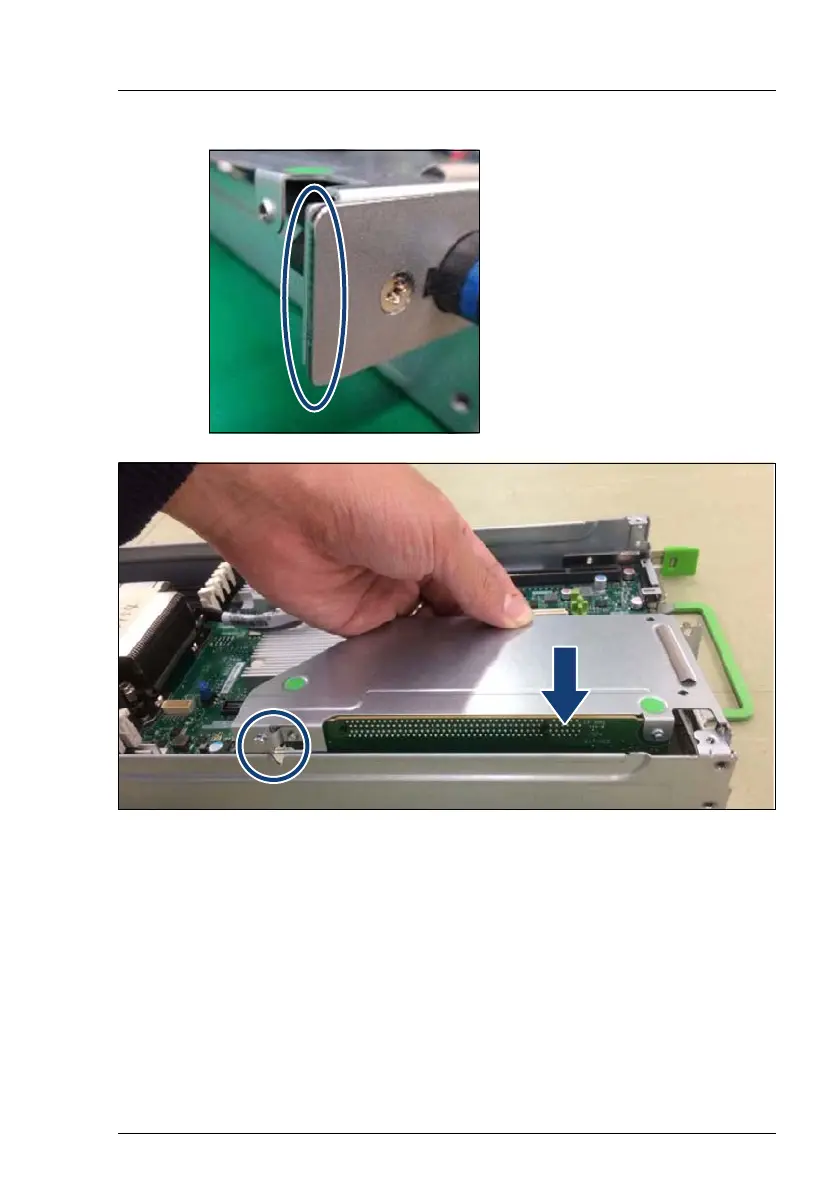

Figure 152: Installing the riser module (A)
Ê Insert the bolt in the chassis recess (see circle).
Ensure that the metal plate aligns
with left edge of the PCI bracket.
