150 Upgrade and Maintenance Manual CX2550/60/70 M4
Expansion cards and OCP mezzanine cards
6.4.3.2 Removing the FBU

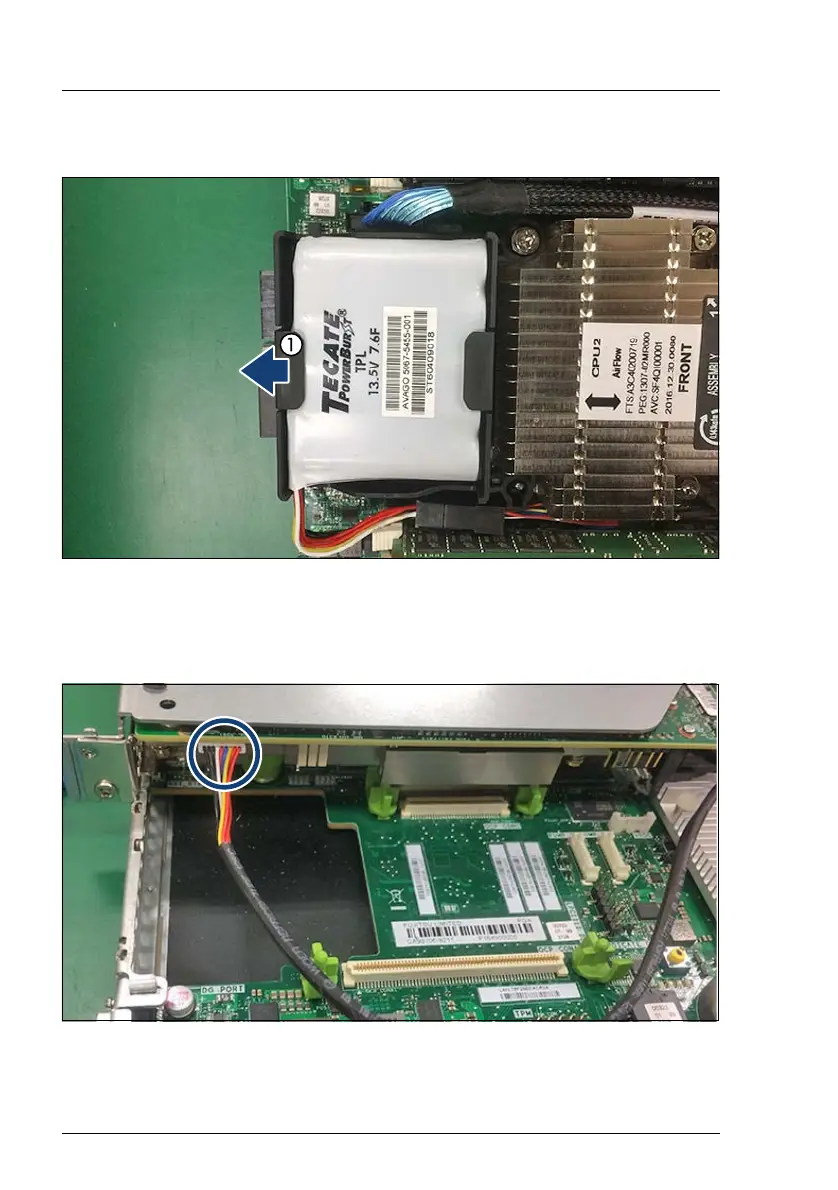

Figure 57: Removing the FBU from the holder
Ê Bend the other bracket outwards (2).
Ê Lift the FBU from the holder.
Figure 58: Disconnecting the FBU cable
Ê Disconnect the FBU cable from the RAID controller (see circle).
