272
Upgrade and Maintenanc
e Manual
CX2550/60/70
M4
System board and compo
nent
s
9.2.1.2
Installing the M.2 SSD

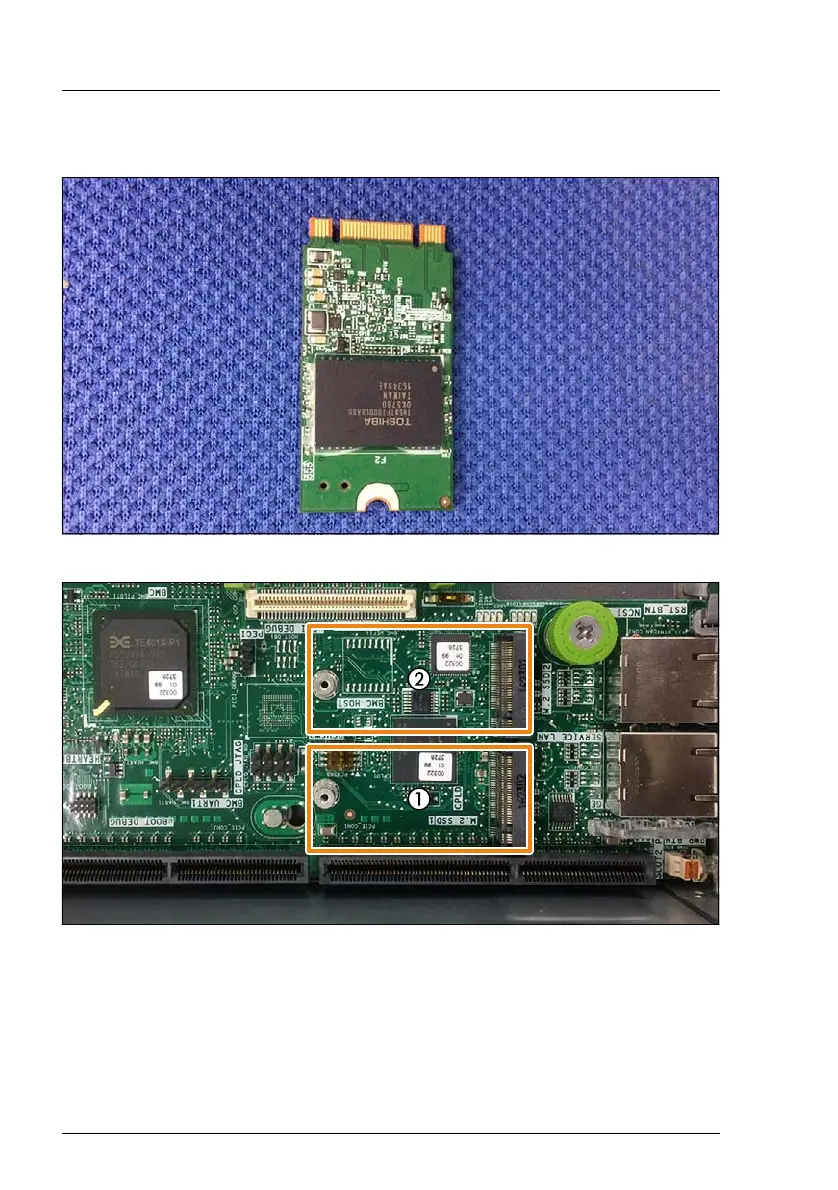

Figure 168: M.2 SSD
Figure 169: M.2 SSD mounting locations
M.2 SSD mounting loc
ations on the system board:
1
M.2 SSD 1 mounting location
2
M.2 SSD 1 mounting location
271
273
