436 Upgrade and Maintenance Manual CX2550/60/70 M4
12.3.3.2 Connecting the Omni-Path PHY card signal cable to the
CPU type 2

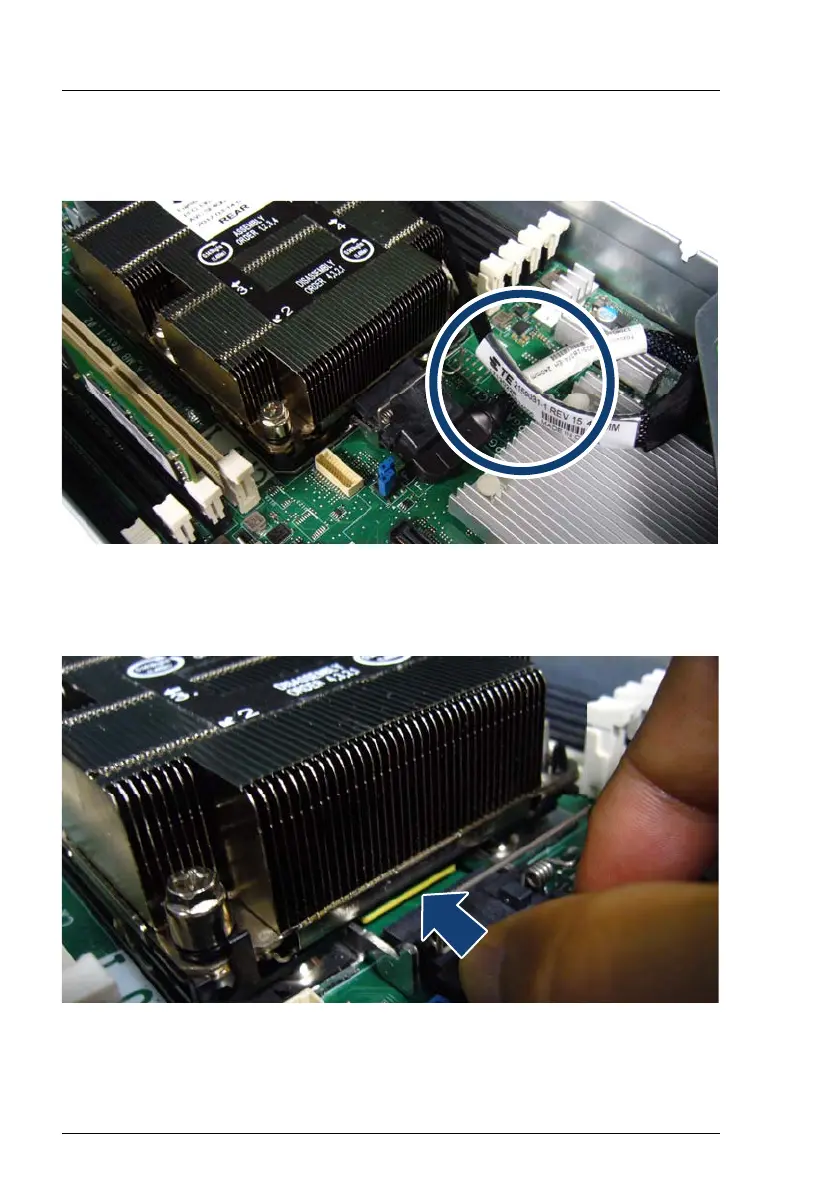

Figure 332: Routing the Omni-Path PHY card signal cable under the SATA cable
Ê Route the Omni-Path PHY card signal cable under the SATA cable (see
circle).
Figure 333: Connecting the Omni-Path PHY card signal cable to the CPU type 2
Ê For connecting the Omni-Path PHY card signal cable to the CPU,
proceed as follows.
