CX2550/60/70 M4 Upgrade and Maintenance Manual 343
10.7.3 Installing the GPGPU

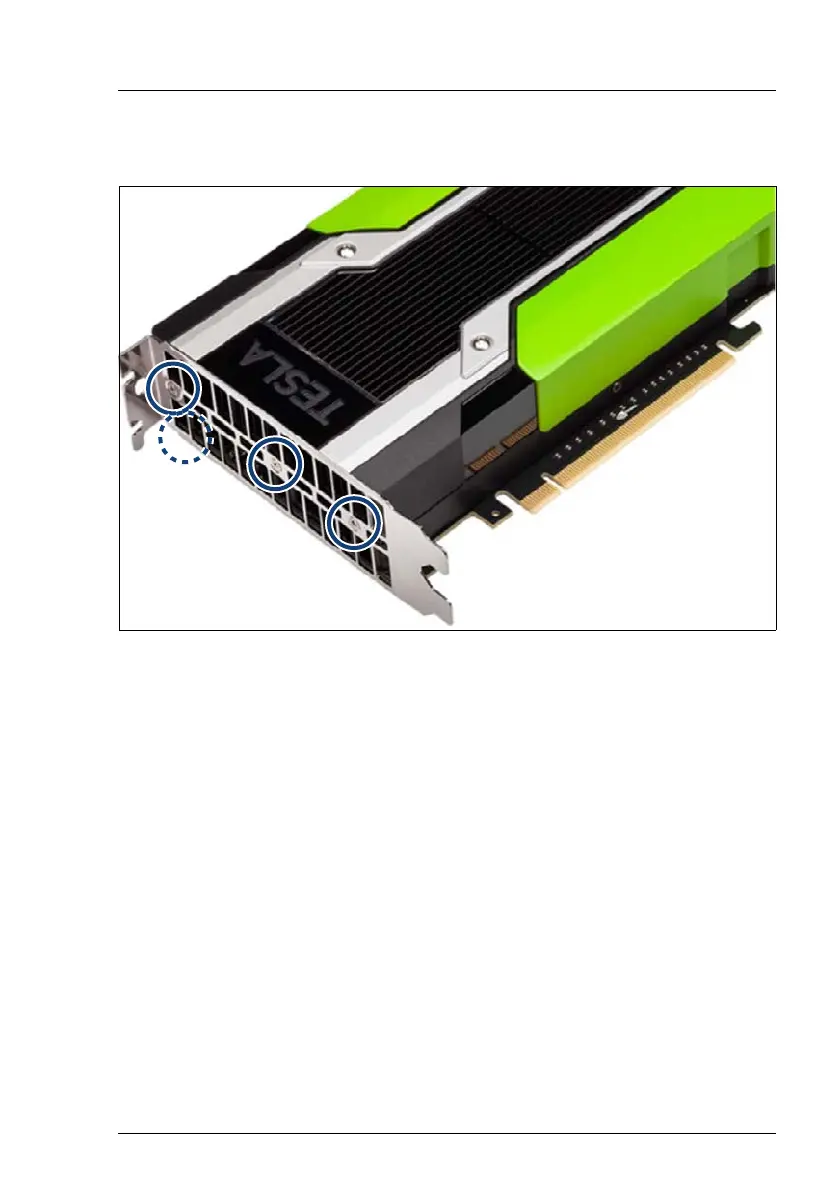

Figure 226: Removing the bracket from the GPGPU
Ê If present, remove the bracket of the new GPGPU by removing three screws
(see circles)
I There might also be a screw on the bottom side of GPGPU (see
dotted circle).
Ê Install the new GPGPU, see section "Installing GPGPU extension in slot
GPGPU 2" on page 334.
Ê Install the removed bracket from the new GPGPU to the defective GPGPU.
