12.3.2.2 Disconnecting the Omni-Path PHY card signal cable from the
CPU type 2

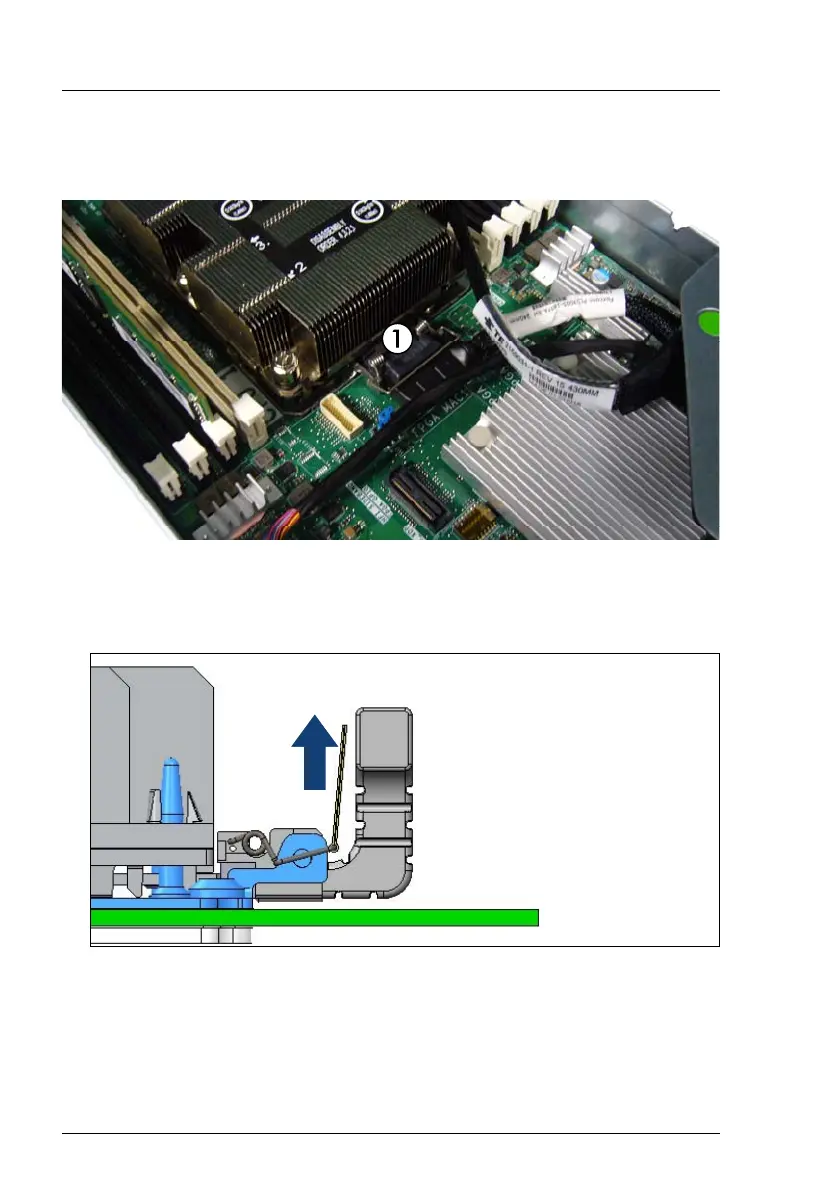

Figure 326: Disconnecting the Omni-Path PHY card signal cable
Ê For disconnecting the Omni-Path PHY card signal cable from the CPU,
proceed as follows (1):
Figure 327: Unlatching the wire bail
Ê Unlatch the wire bail by gently pulling the pull tab.
