CX2550/60/70 M4 Upgrade and Maintenance Manual 61
Basic hardware procedures
4.9 Mounting a slot cover to the riser module

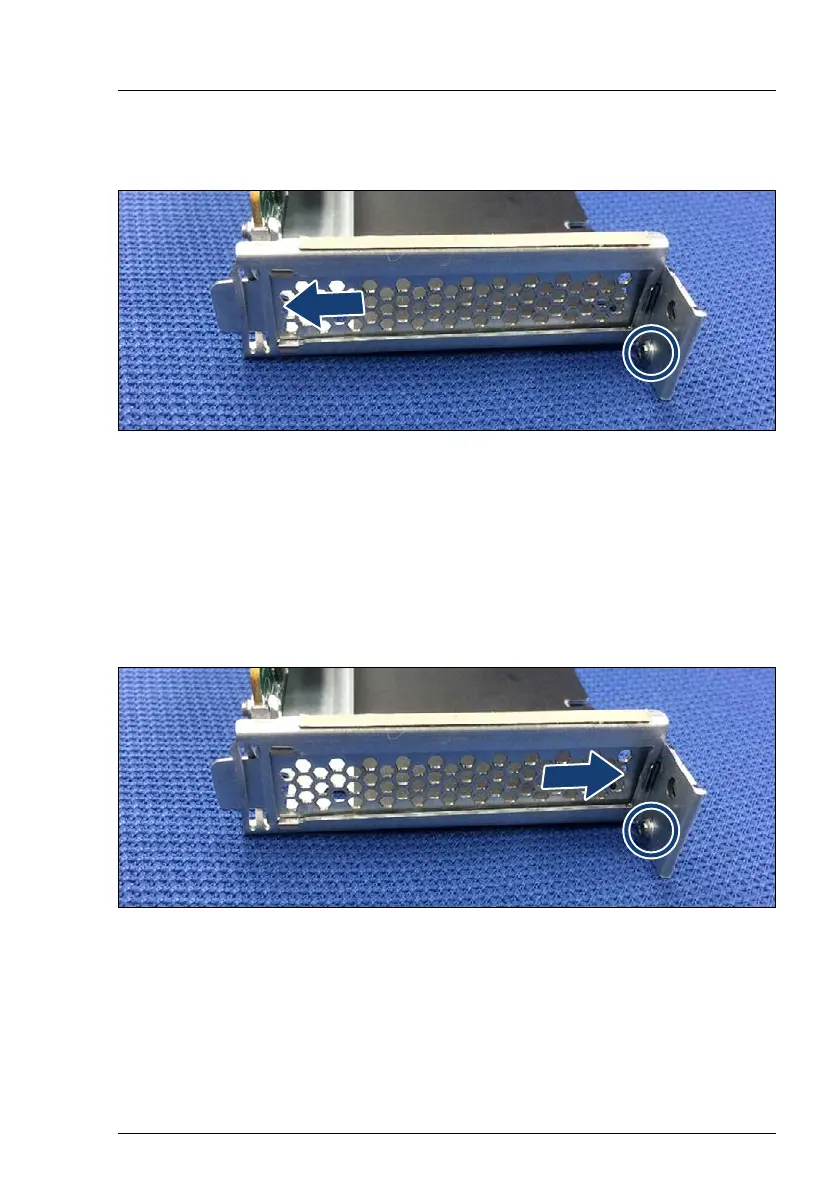

Figure 15: Mounting a slot cover to the riser module
Ê Insert a slot cover into the riser module front opening (see arrow).
Ê Secure the slot cover to the riser module with a screw (see circle).
4.10 Removing the slot cover from the riser
module
Figure 16: Removing a slot cover from the riser module
Ê Remove the screw from the riser module (see circle).
Ê Pull the slot cover from the riser module (see arrow).
