146 Upgrade and Maintenance Manual CX2550/60/70 M4
Expansion cards and OCP mezzanine cards
6.4.2.4 Cabling of the FBU

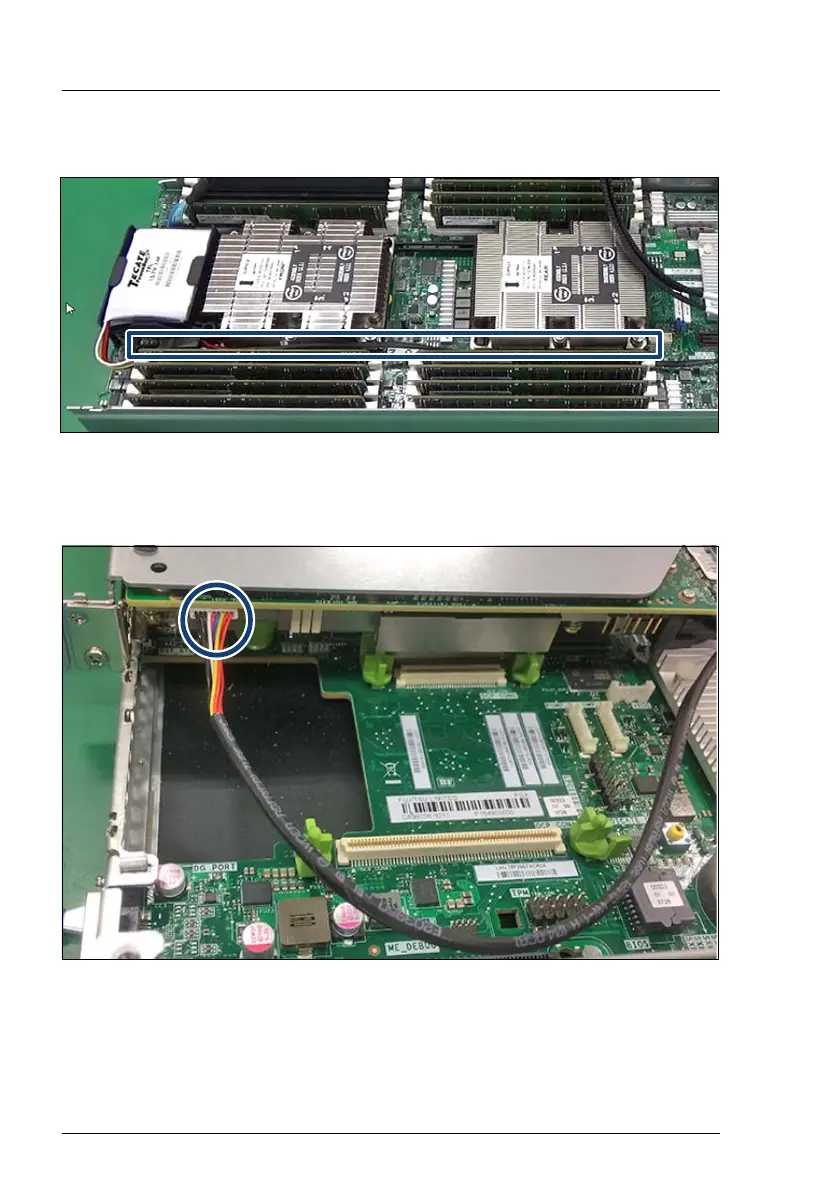

Figure 52: Routing the FBU cable
Ê Insert the FBU cable into the gap between the heat sink and DIMM module,
see marking.
Figure 53: Connecting the FBU cable to the RAID controller
Ê Connect the FBU cable to the raid controller, see circle.
I Install the FBU cable to the right riser module accordingly.
