130 Upgrade and Maintenance Manual CX2550/60/70 M4
Expansion cards and OCP mezzanine cards

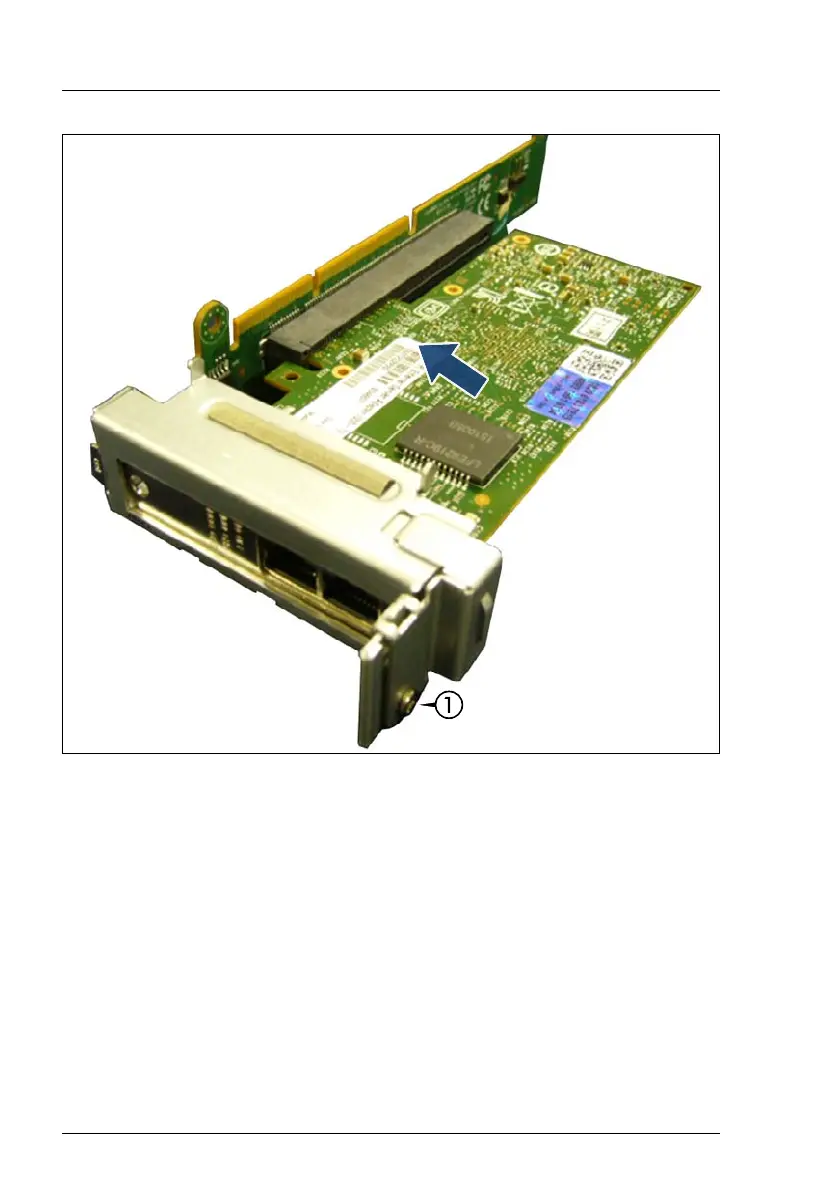

Figure 36: Mounting a controller to the riser module
Ê Fasten the expansion card and the gasket with one screw (1).
Ê Plug the expansion card into the SMX2 riser (L) type 2 connector.
6.3.1.3 Concluding steps
Perform the following procedures:
Ê "Installing the SXM2 riser (L) type 2" on page 412
Ê "Installing the GPGPU / SXM2 extension tray" on page 65
Ê "Installing the server node in the server enclosure" on page 67
Ê Reconnect all external cables.
