CX2550/60/70 M4 Upgrade and Maintenance Manual 409
11.5 Replacing the SMX2 Riser (L) type 1
11.5.1 Preliminary steps
Perform the following procedures:
Ê "Disabling the boot watchdog functionality of ServerView Operations
Manager" on page 73
Ê Locate the desired server node with the ID button.
Ê "Shutting down the server node" on page 50
Ê If applicable, remove all external cables from the server node.
Ê "Removing the server node from the server enclosure" on page 51
Ê "Removing the GPGPU / SXM2 extension tray" on page 53
11.5.2 Removing the SXM2 riser (L) type 1

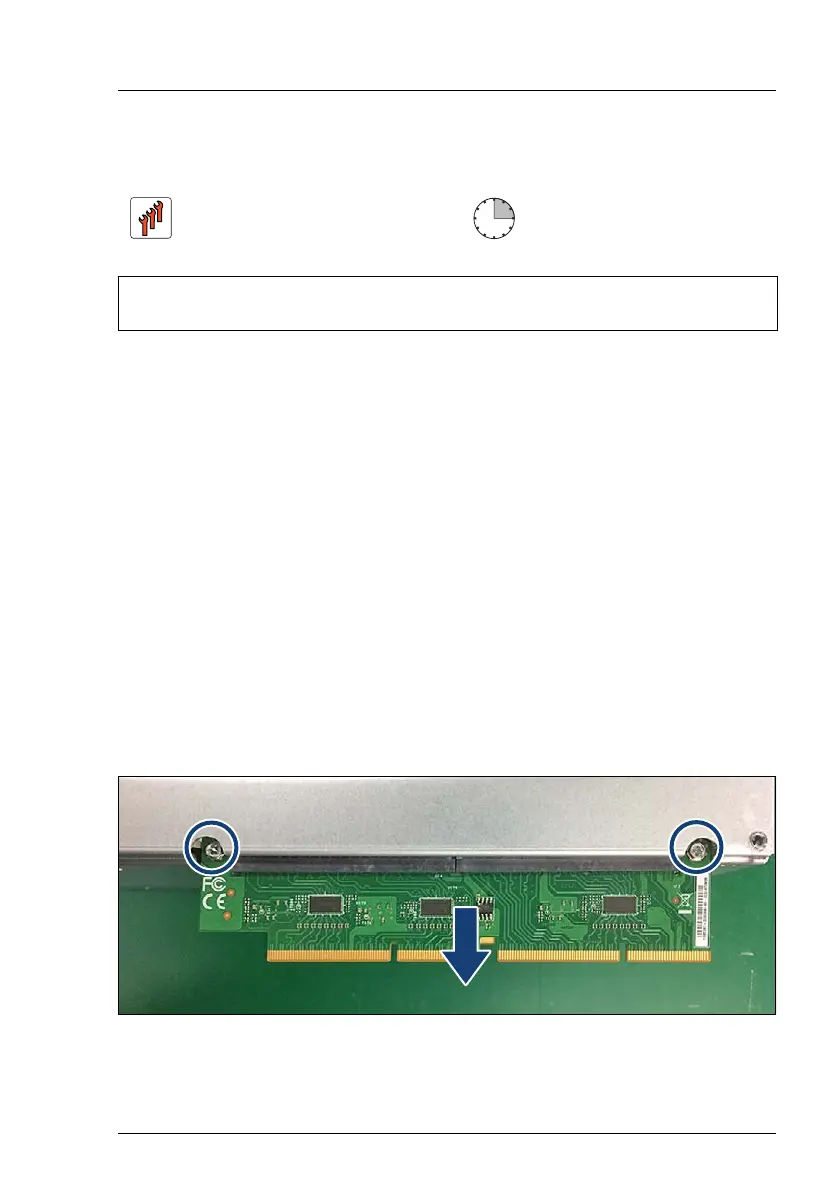

Figure 299: Removing the riser (L) type 1
Ê Place the SXM2 tray on the right side so that the system board connectors
of the risers are not damaged.
Field Replaceable Unit
(FRU)
Hardware: 15 minutes
Tools: Preliminary and concluding steps: tool-less
Main steps: PH2 / (+) No. 2 screw
