GPGPU extension tray
10.11.3 Installing the PIB

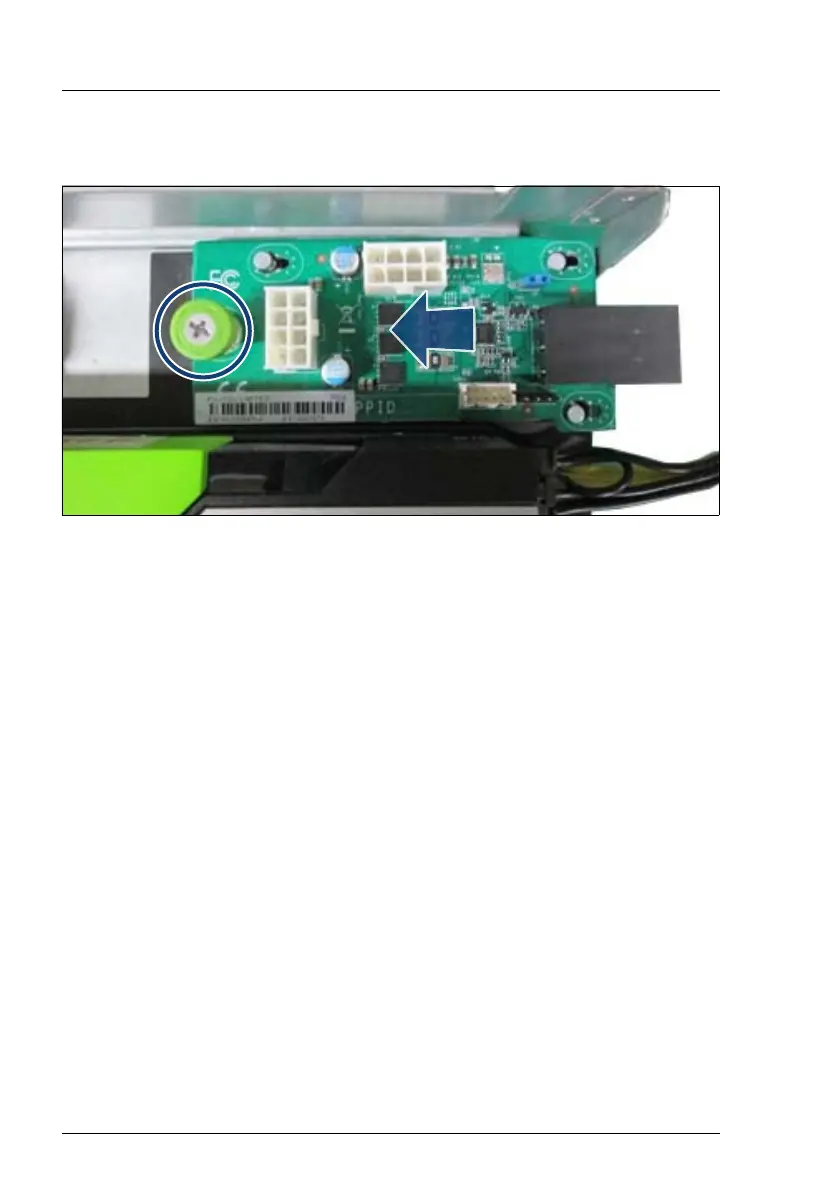

Figure 234: Installing the PIB
Ê At a slight angle, lower the PIB into the chassis.
Ê Carefully shift the PIB in the direction of the arrow until the plug shell engage
with the cut-out in the chassis.
Ê
Fasten the PIB with the captive screw (see circle).
