62 Upgrade and Maintenance Manual CX2550/60/70 M4
Basic hardware procedures
4.11 Installing the OCP dummy module

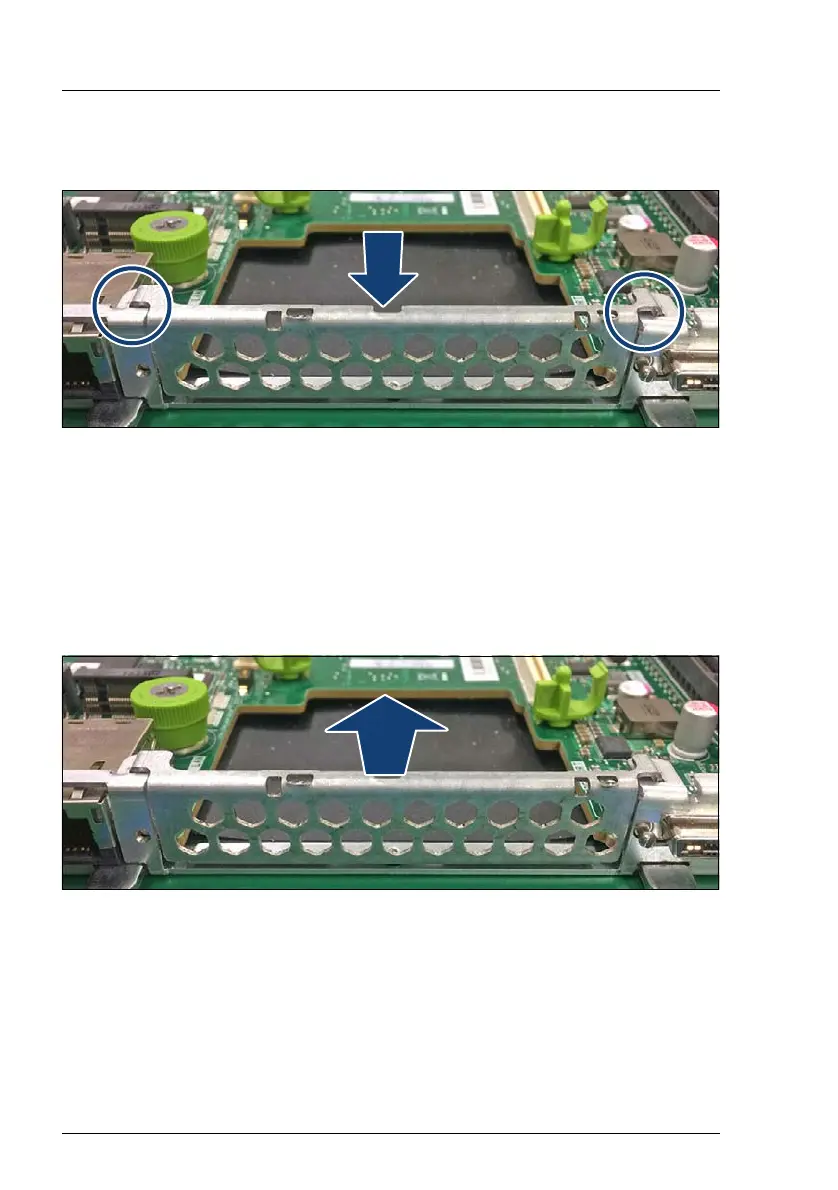

Figure 17: Installing the OCP dummy module
Ê Insert the OCP dummy module in front of the OCP slot.
Make sure the hooks on both sides of the OCP dummy module are inserted
in the recesses of the chassis (see circles).
4.12 Removing the OCP dummy module
Figure 18: Removing the OCP dummy module
Ê Remove the OCP dummy module from the chassis.
