CX2550/60/70 M4 Upgrade and Maintenance Manual 169
Expansion cards and OCP mezzanine cards
6.7.2.2 OCP mezzanine card
I The OCP mezzanine card figures show an example.

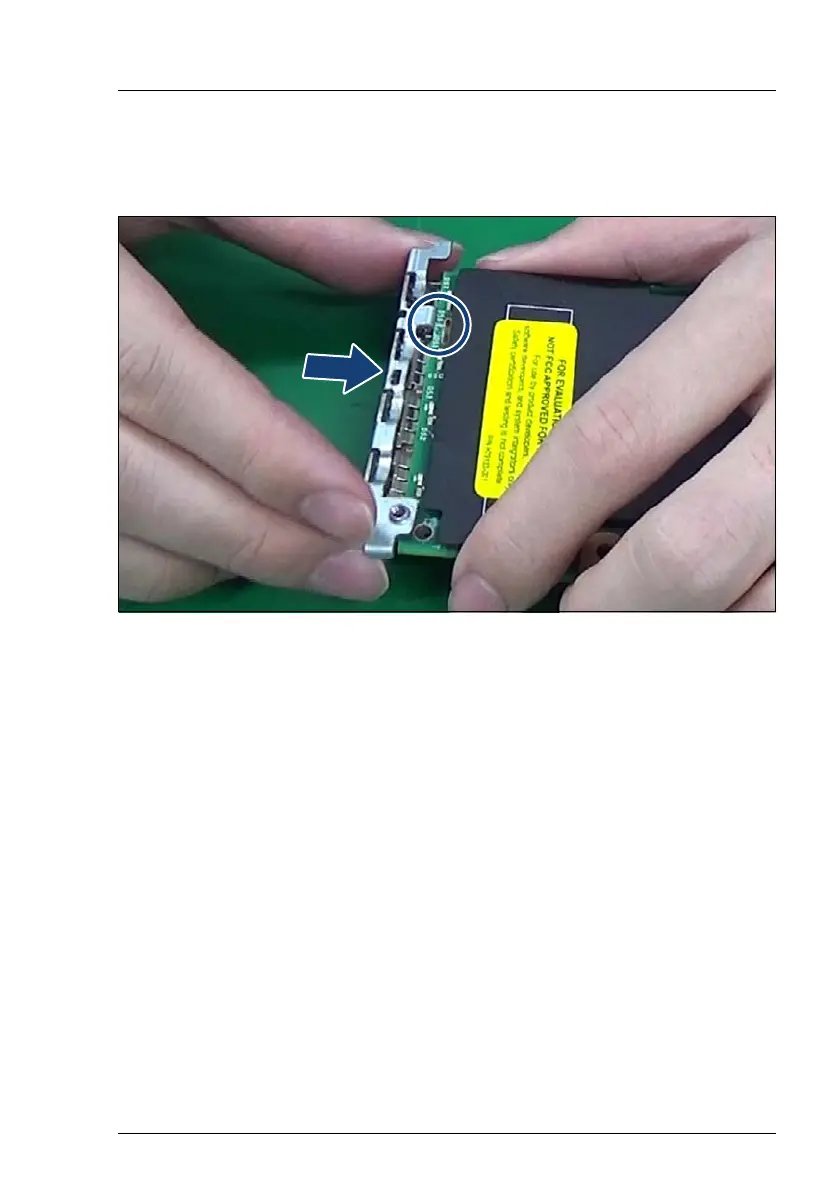

Figure 67: Placing the slot bracket - OCP mezzanine card
Ê Carefully shift the slot bracket towards the OCP mezzanine card until the
plug shells engage with the cut-outs in the slot bracket connector panel.
Ê Ensure that the metal pin of the bracket fits with the recess of OCP
mezzanine card (see circle).
Ê Turn the OCP mezzanine card to the other side.
