284 Upgrade and Maintenance Manual CX2550/60/70 M4
System board and components
Ê Attach the TPM bit insert or TPM module fixing tool (for Japan) to a bit screw
driver.

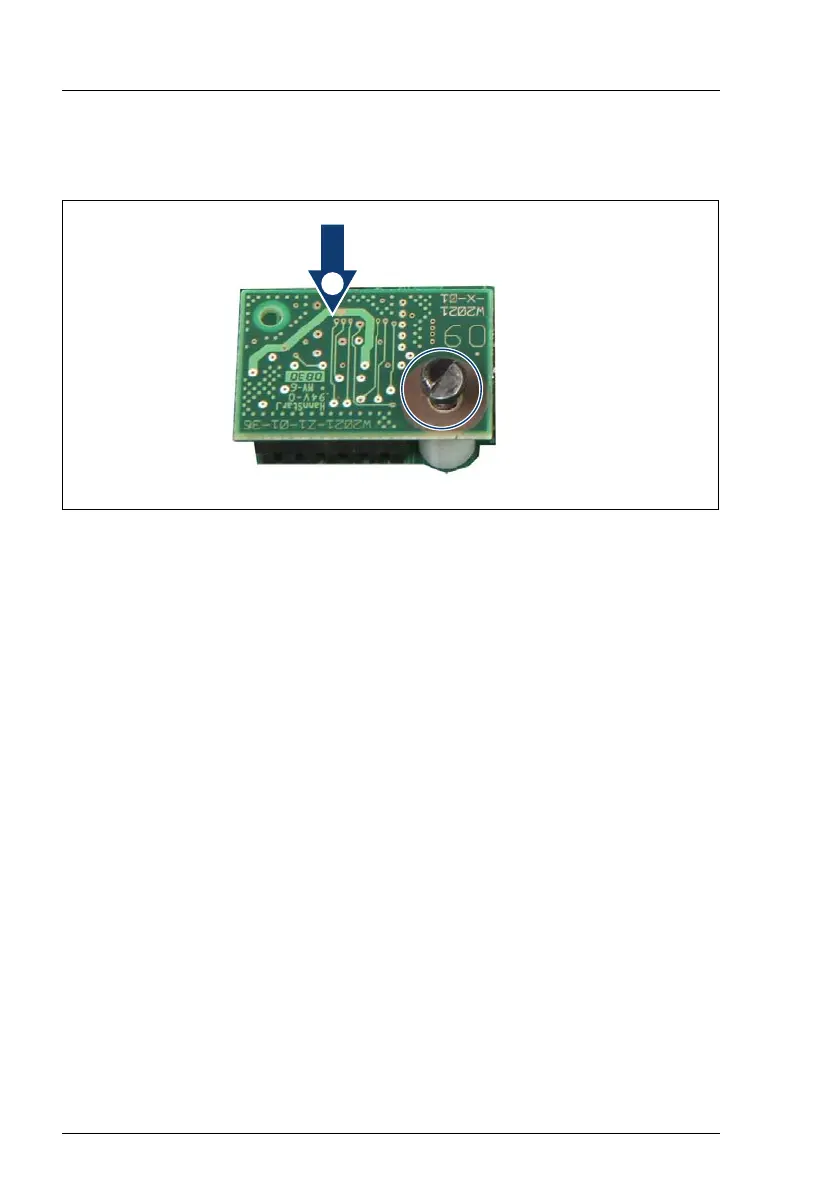

Figure 178: Installing the TPM
Ê Connect the TPM to the system board (1).
Ê Fasten the TPM with the special screw for the TPM using the TPM bit insert
or TPM module fixing tool (for Japan) (2).
V CAUTION!
Do not fasten the screw too firmly. Stop it by extent where the head
of the screw lightly touches the TPM (torque value of 0.6 Nm).
9.3.1.2 Concluding steps
Ê "Installing the M.2 SSD" on page 271 (if applicable)
Ê "Installing the iRMC microSD card" on page 292 (if applicable)
Ê "Installing the riser module" on page 55
I Install the expansion cards into their original slots.
Ê "Installing the FBU" on page 139 (if applicable)
Ê "Installing OCP mezzanine cards" on page 159 (if applicable)
Ê "Installing a memory module" on page 191
I Install the memory modules into their original slots.
햲
햳
