8.3.2.4 Removing the flexible tubes of the CPU/RAM loop type 2

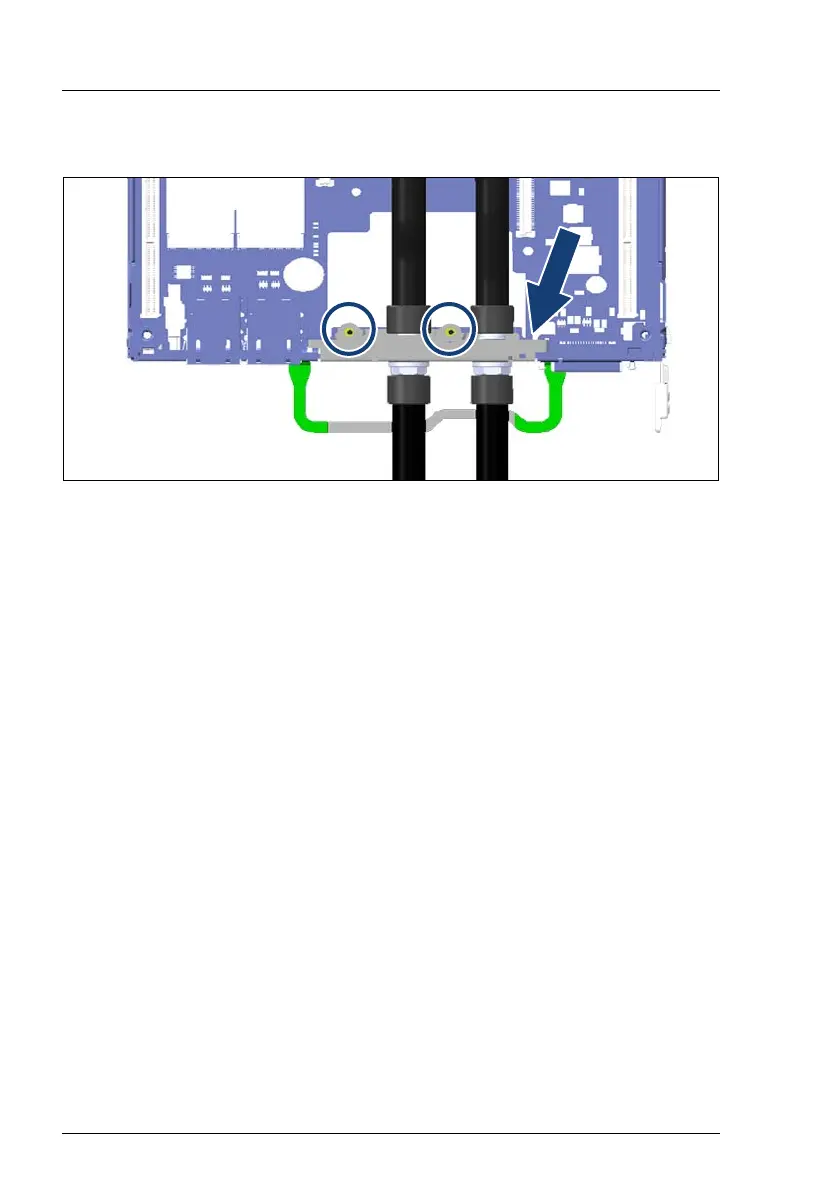

Figure 123: Removing the flexible tubes
Ê Remove the two M2 screws (see circles).
Ê Remove the LC bracket from the tray (see arrow).
8.3.2.5 Removing the LC heat sinks
Ê After pulling both flexible tubes through the holes of the LC bracket, lift the
LC heat sinks off the system board.
V CAUTION
Pay special attention not to damage any system board components
surrounding the CPU socket.
