Fujitsu PRIMERGY CX2550 M4

CX2550/60/70 M4 Upgrade and Maintenance Manual 377
SXM2 extension tray
11.2.3 Removing the SXM2 module

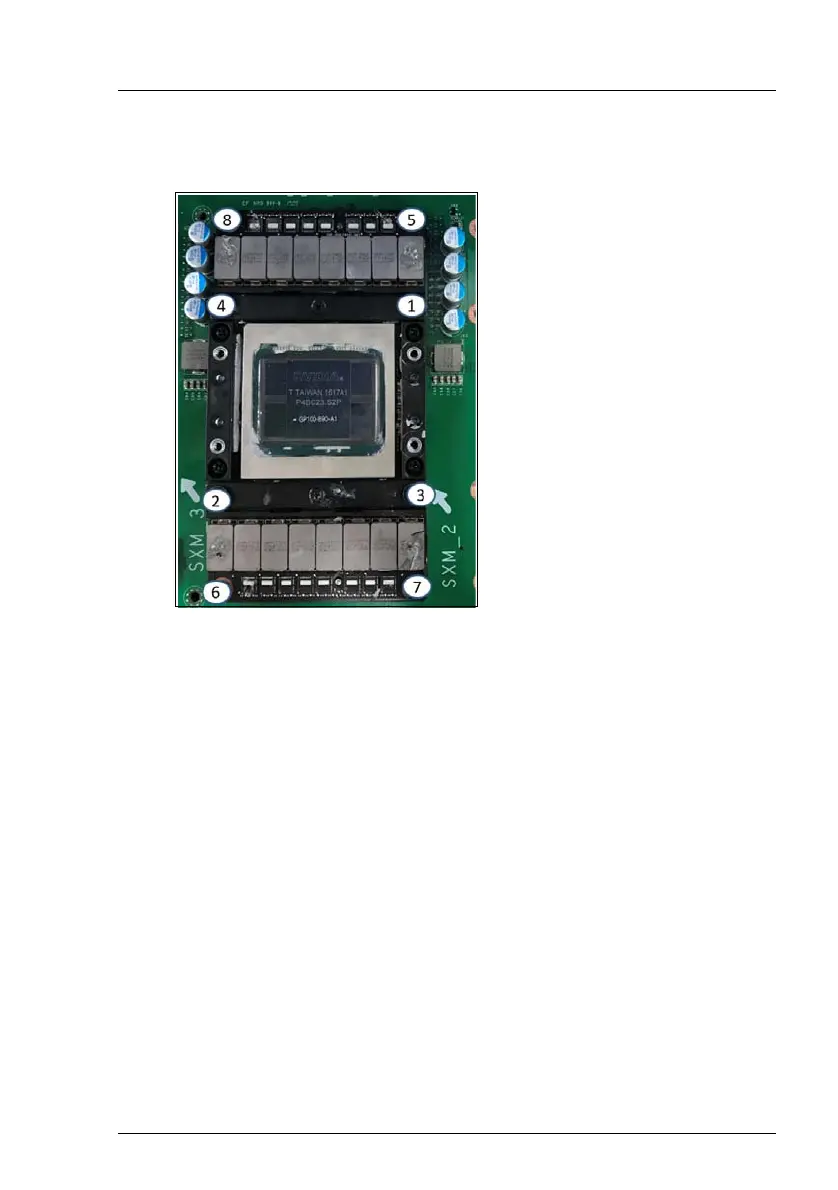

Ê Loosen the eight captive screws
on the SXM2 module
by the
sequence from 8 to 1
.
Ê Carefully remove the defective
SXM2 module from its sockets
in a vertical motion.
