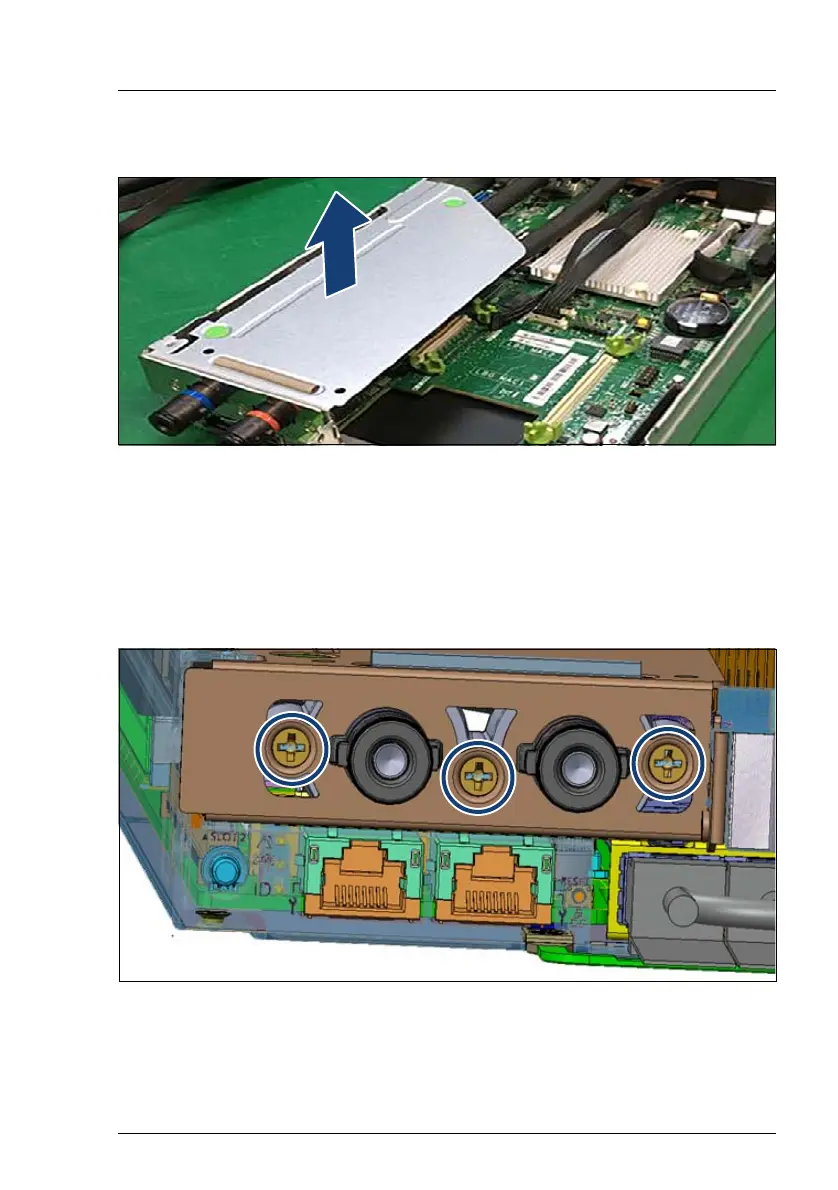

Ê Remove the metal plate (see cut out).
Figure 117: Removing the LC flexible tubes riser
Ê Remove the LC flexible tubes riser from the tray.
Ê Pull both flexible tubes from the riser.
8.3.2.2 CPU / RAM loop type 1: Removing the flexible tubes (CX2550 M4
/ CX2560 M4) Type 2
Figure 118: Loosening the LC bracket
Ê Loosen the three screws (see circles) of the LC bracket.
