12.3.2 Removing the Omni-Path PHY card signal cable
and the Omni-Path PHY card sideband cable
12.3.2.1 Disconnecting the Omni-Path PHY card sideband cable from the
system board

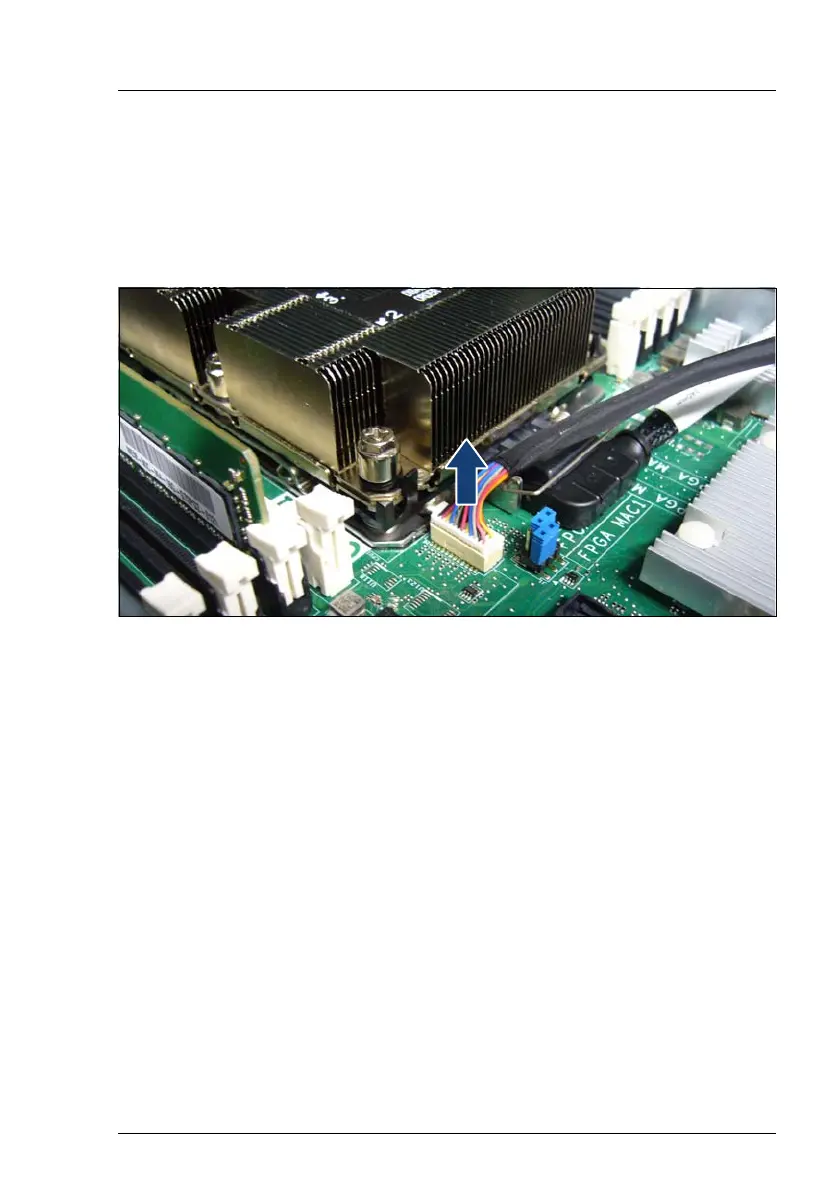

Figure 325: Disconnecting the Omni-Path PHY card sideband cable
Ê Disconnect the Omni-Path PHY card sideband cable from the system board
(see arrow).
