148 Upgrade and Maintenance Manual CX2550/60/70 M4
Expansion cards and OCP mezzanine cards
CX2570 M4 with PRAID EP520i/540i/580i

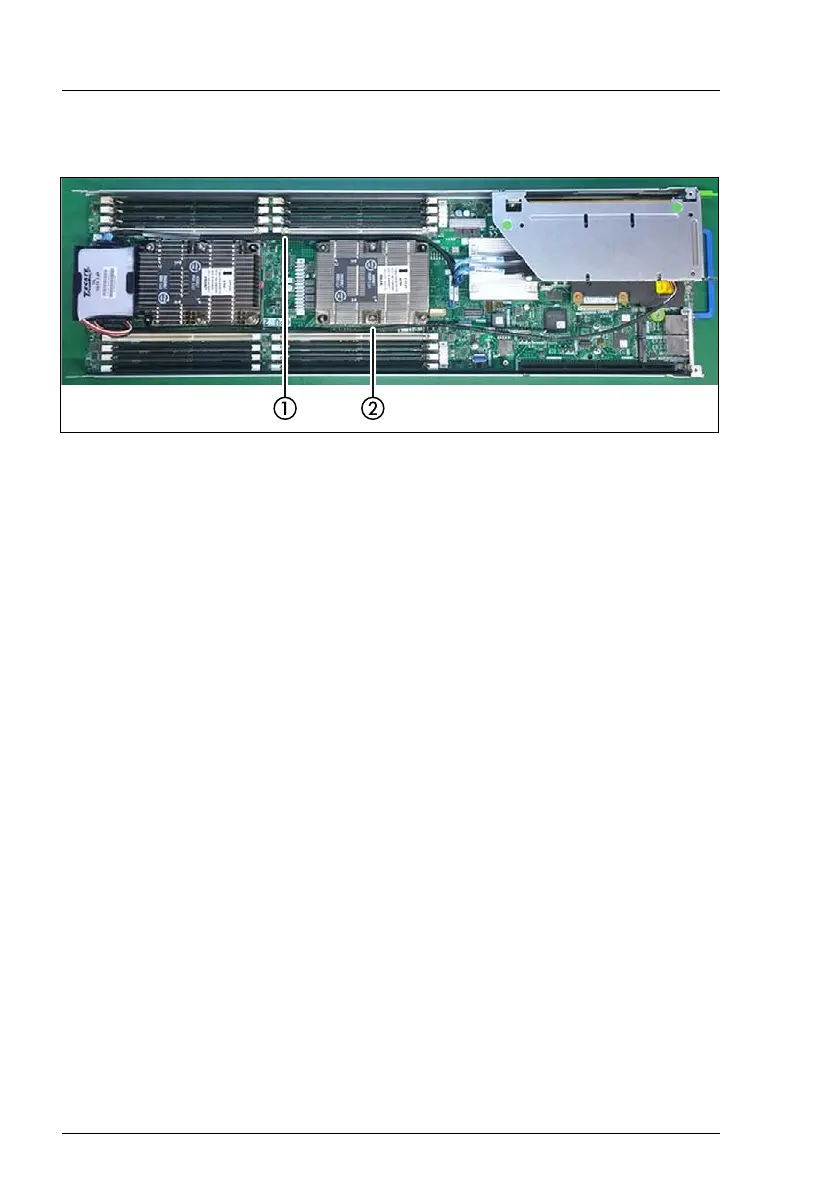

Figure 56: Routing the FBU and SAS cables
Ê Route the SAS cable (1) and the FBU cable (2) as shown.
6.4.2.5 Concluding steps
Perform the following procedures:
Ê "Installing the riser module" on page 55
Ê "Installing the memory slot air duct (Air cooling only)" on page 64
Ê "Installing the server node in the server enclosure" on page 67
Ê Reconnect all external cables.
Ê "Controls and indicators on the server node" on page 448
Ê "Updating expansion card firmware" on page 83 (if applicable)
