CX2550/60/70 M4 Upgrade and Maintenance Manual 147
Expansion cards and OCP mezzanine cards
CX2560 M4 with PRAID EP400i/EP420i/EP420e and PRAID
EP520i/540i/580i

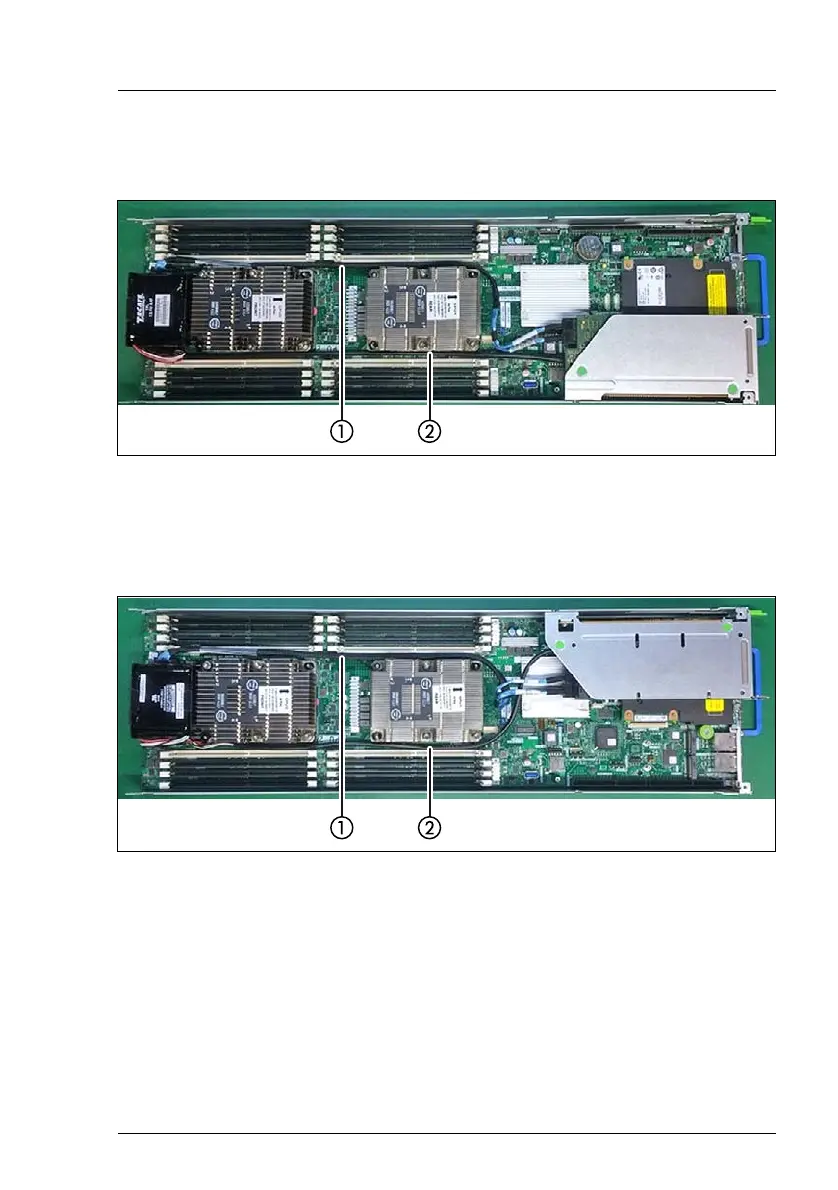

Figure 54: Routing FBU and SAS cables
Ê Route the SAS cable (1) and the FBU cable (2) as shown.
CX2570 M4 with PRAID EP400i/EP420i/EP420e
Figure 55: Routing the FBU and SAS cables
Ê Route the SAS cable (1) and the FBU cable (2) as shown.
