System board and components
9.4.1.2 Installing the iRMC microSD card

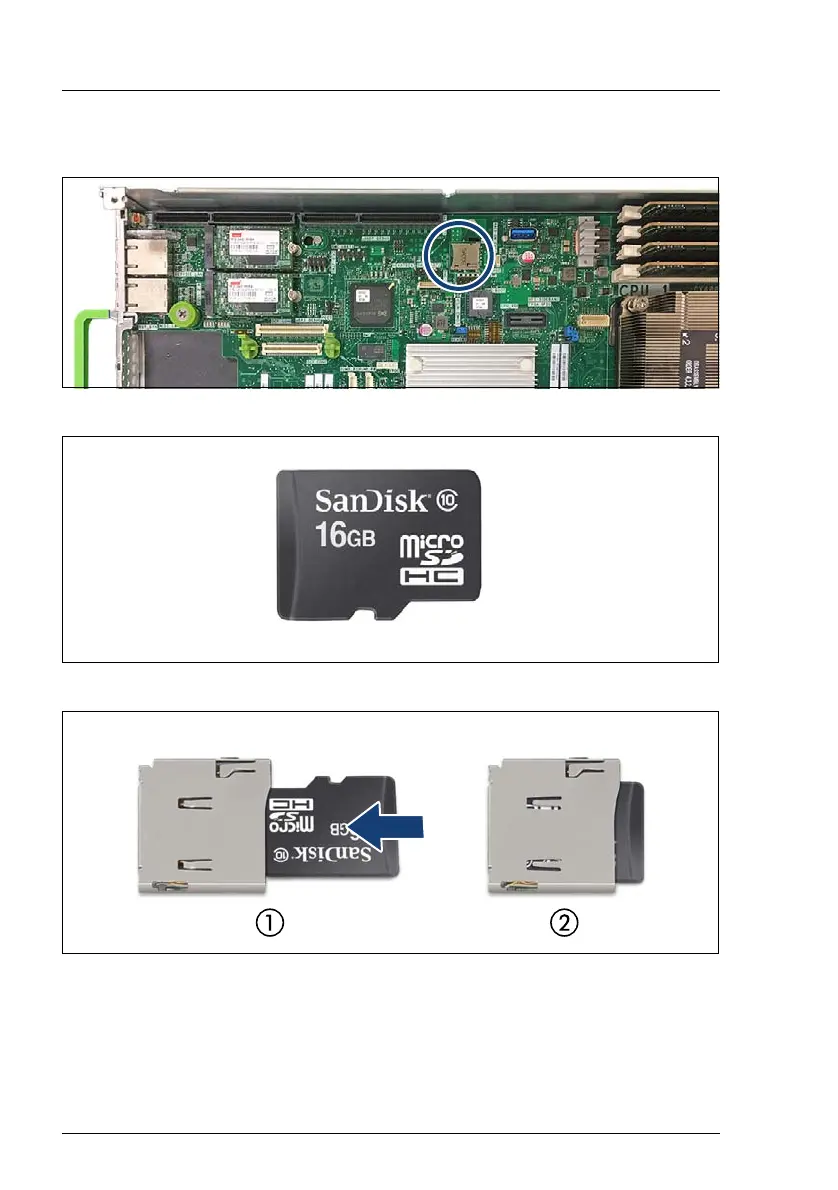

Figure 181: iRMC microSD mounting place
Figure 182: iRMC microSD card
Figure 183: Installing the iRMC microSD card
Ê With the label facing up, insert the iRMC microSD card into the microSD
card slot (1) as far as it will go (2).
I The onboard position of the microSD card slot can be found in section
"Connectors and indicators" on page 443.
