CX2550/60/70 M4 Upgrade and Maintenance Manual 413

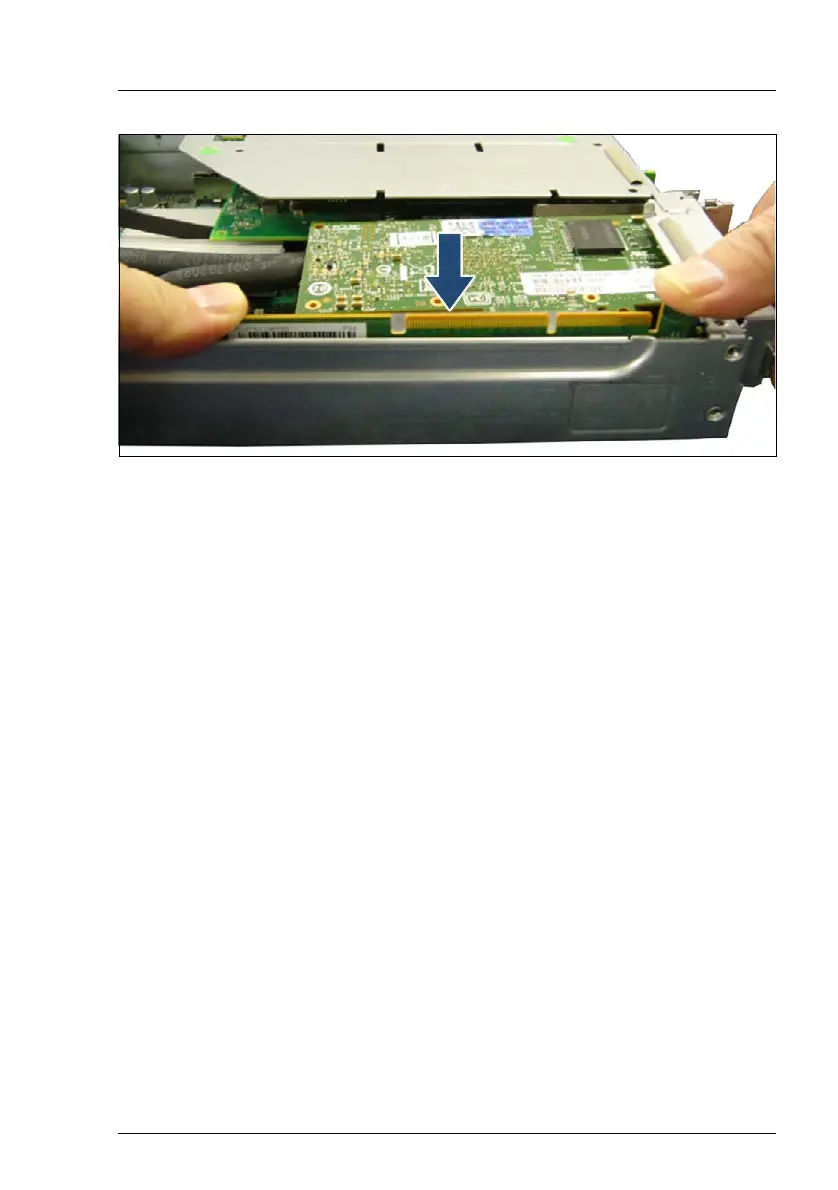

Figure 303: Installing the riser (L) type 2
Ê Lower the SXM2 riser card (L) type 2 straight on and plug it in the slot.
11.6.4 Concluding steps
Perform the following procedures:
Ê "Installing the GPGPU / SXM2 extension tray" on page 65
Ê "Installing the server node in the server enclosure" on page 67
Ê If applicable, connect all external cables to the server node.
Ê "Controls and indicators on the server node" on page 448
Ê "Enabling SVOM boot watchdog functionality" on page 88
