358 Upgrade and Maintenance Manual CX2550/60/70 M4
11.1 Basic information
With the SXM2 extension tray, the system offers four slots for SXM2 modules.
Overview

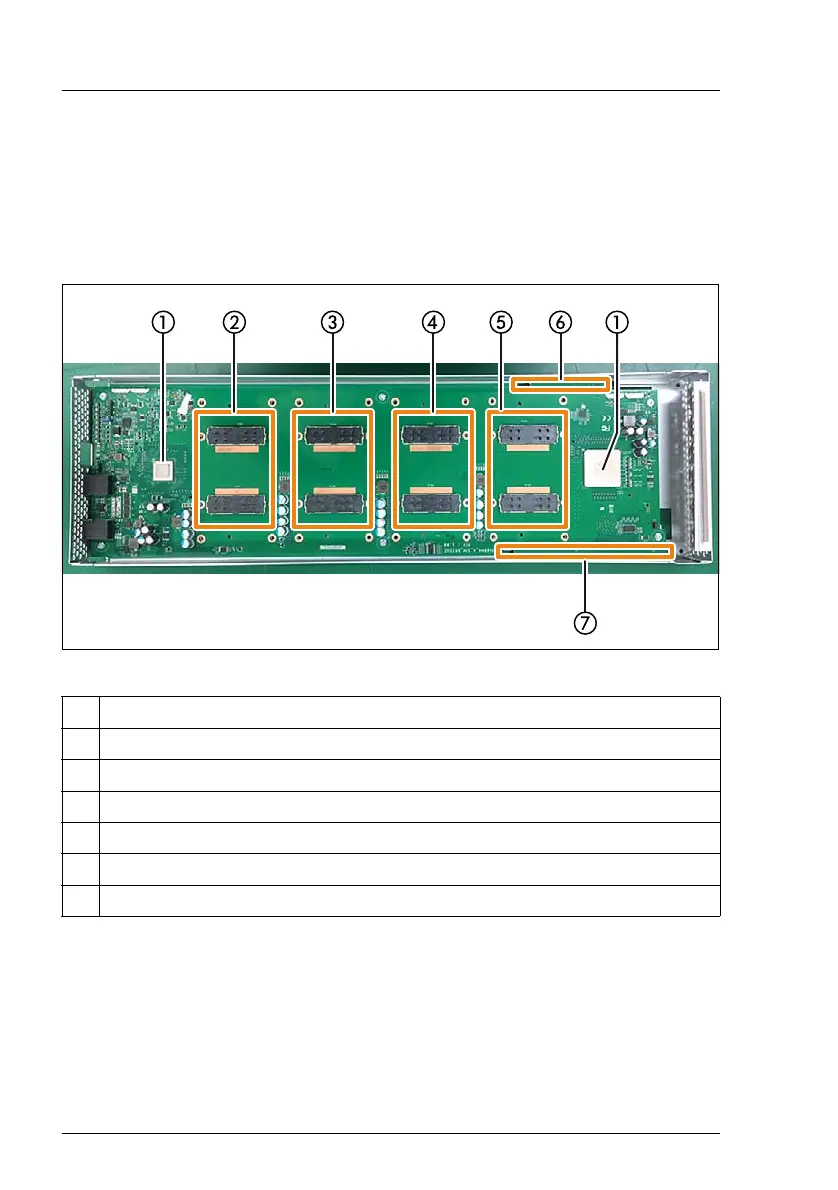

Figure 236: SXM2 extension tray overview (not populated)
I For more information, see "CX2570 M4 PCIe Slot / OCP slot population
order (air cooling)" on page 113.
1 PCIe switch
2 SXM2 slot 1
3 SXM2 slot 2
4 SXM2 slot 3
5 SXM2 slot 4
6 Connector for riser (R) at the bottom of the baseboard (not visible)
7 Connector for riser (L) at the bottom of the baseboard (not visible)
