11.2 Replacing SXM2 modules
11.2.1 Preliminary steps
Perform the following procedures:
Ê "Disabling the boot watchdog functionality of ServerView Operations
Manager" on page 73
Ê Locate the desired server node with the ID button.
Ê "Shutting down the server node" on page 50
Ê If applicable, remove all external cables from the server node.
Ê "Removing the server node from the server enclosure" on page 51
11.2.2 Removing liquid cooling (LC)
11.2.2.1 Removing liquid cooling from SXM2 modules 3 and 4
Type 1

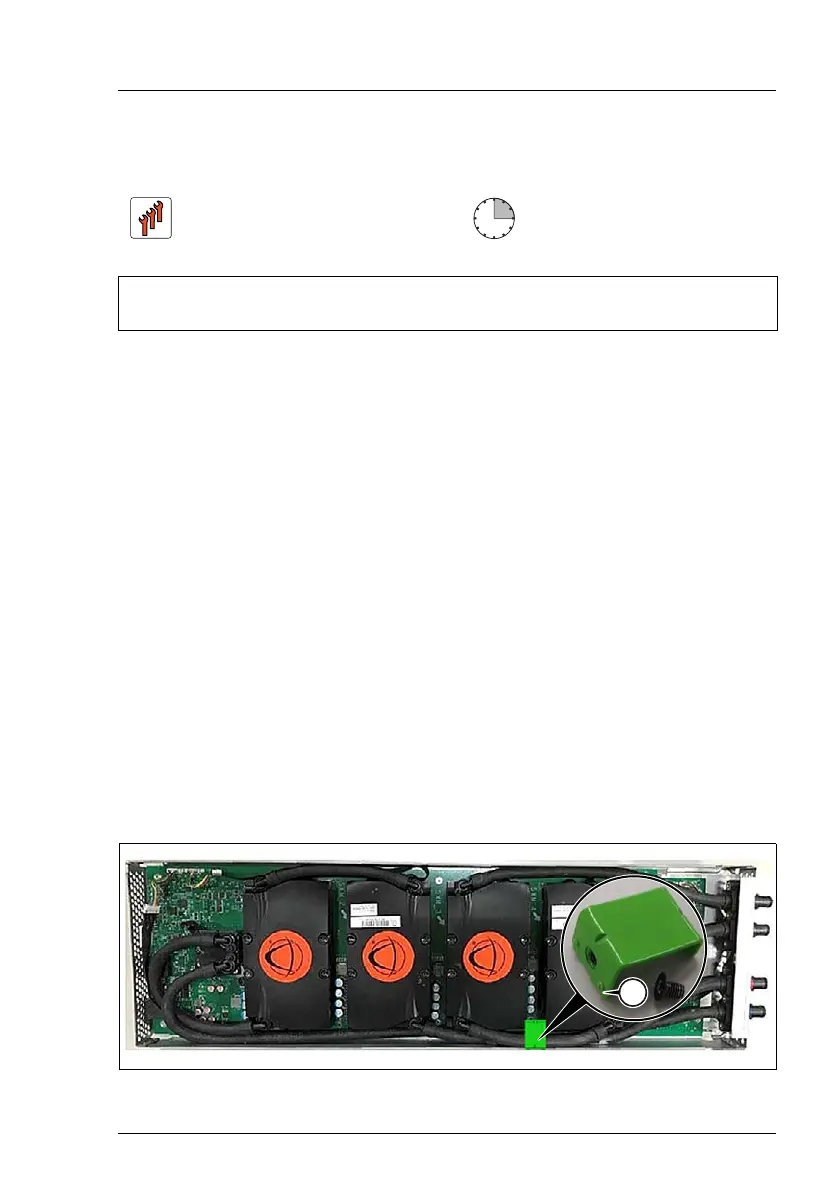

Figure 240: Removing the flexible tube fixation bracket.
Field Replaceable Unit
(FRU)
Hardware: 15 minutes
Tools: Preliminary and concluding steps: tool-less
Main steps: PH2 / (+) No. 2 screw
