SXM2 extension tray
Ê Remove the screw (A) and remove the flexible tube fixation bracket.

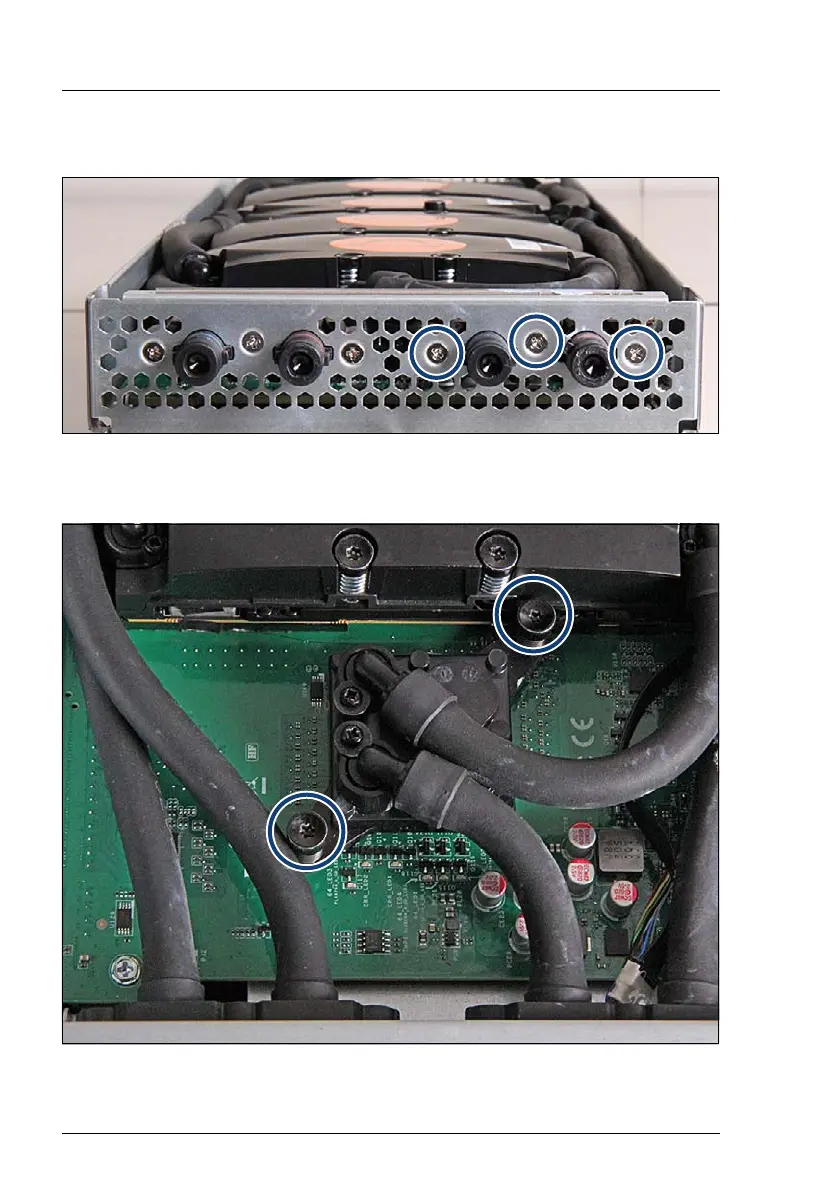

Figure 241: Loosening the tube guides from the LC bracket
Ê Remove three screws (see circles).
Figure 242: Removing the LC heat sink from the PCIe switch
