404 Upgrade and Maintenance Manual CX2550/60/70 M4

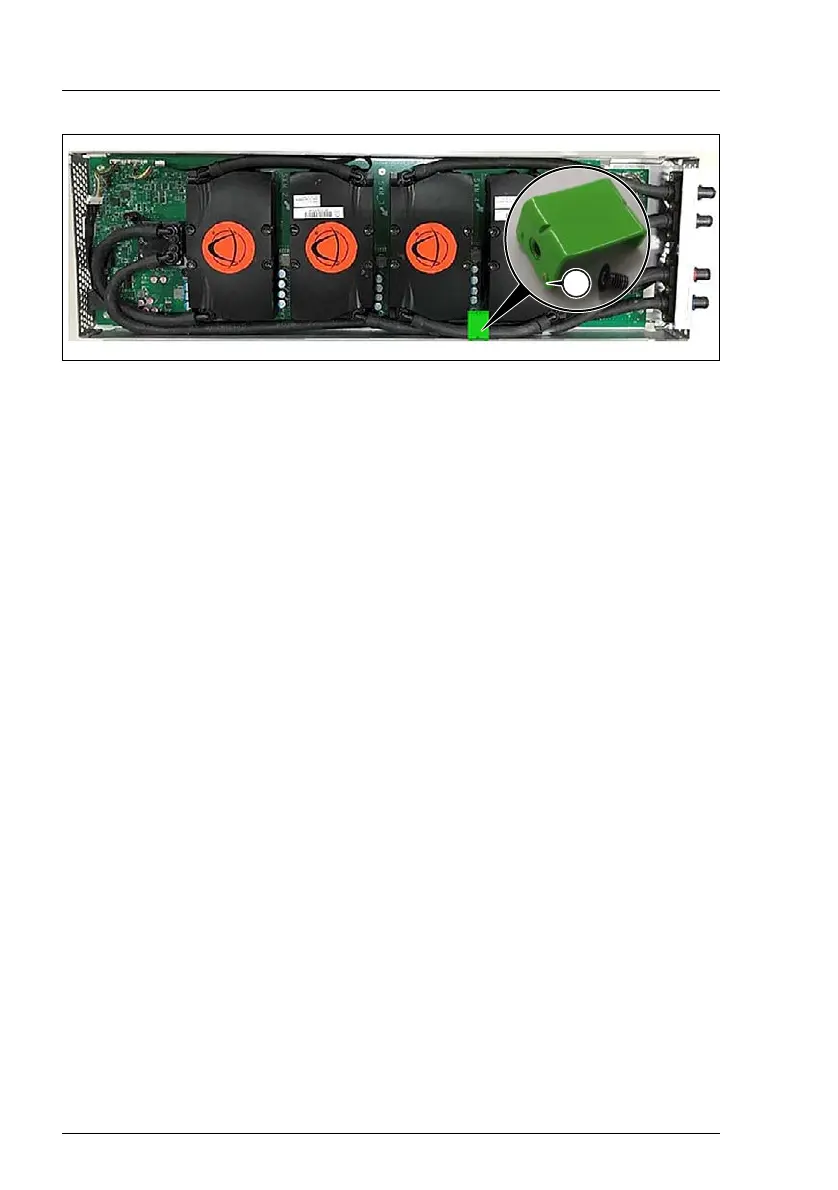

Figure 296: Installing the tube fixation bracket
Ê Place the tube fixation bracket as shown and fasten it with one M3 screw (A).
11.2.6 Concluding steps
Perform the following procedures:
Ê "Installing the server node in the server enclosure" on page 67
Ê If applicable, connect all external cables to the server node.
Ê "Updating or recovering the system board BIOS and iRMC" on page 77 (if
applicable)
Ê "Controls and indicators on the server node" on page 448
Ê "Enabling SVOM boot watchdog functionality" on page 88
