CX2550/60/70 M4 Upgrade and Maintenance Manual 403

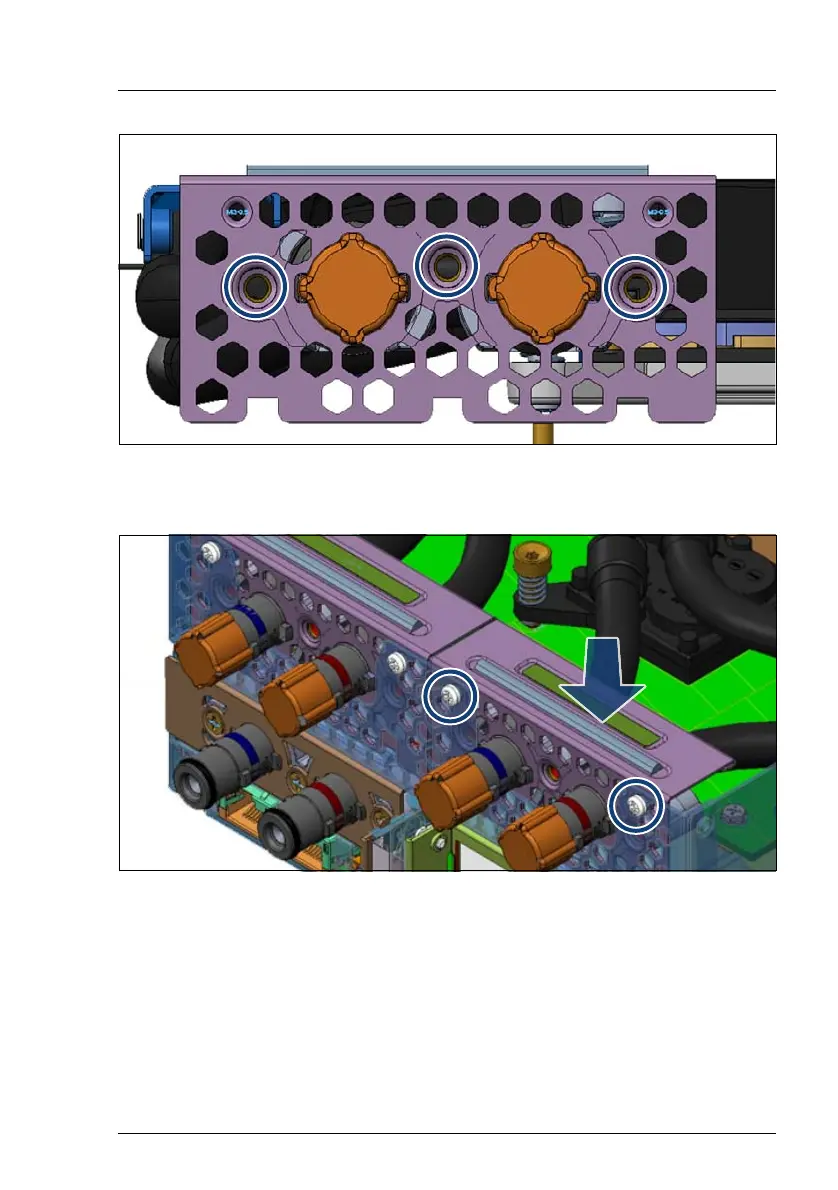

Figure 294: Fastening the LC bracket
Ê Fasten the LC bracket with three screws (see circles).
Figure 295: Installing the LC bracket
Ê Put the LC bracket with tubes (see arrow) and fasten the LC bracket
with two screws (see circles).
