402 Upgrade and Maintenance Manual CX2550/60/70 M4

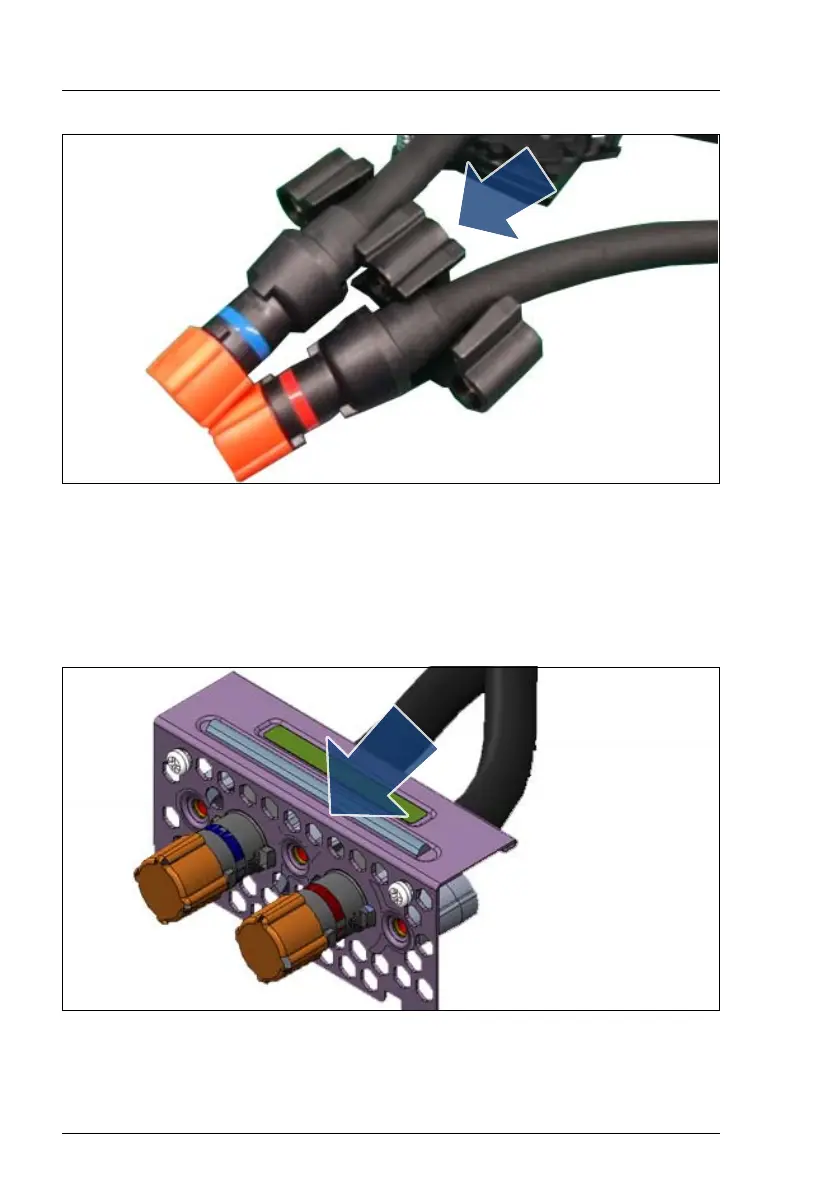

Figure 292: Fixating the quick connector holder
Ê Move the quick connector holder to the end of the tube junction.
V CAUTION!
Assemble the quick connector holder so that the recess of the
tube junction is at the top.
Figure 293: Installing the flexible tubes
Ê Push both flexible tubes through the holes of the LC bracket (see
arrow).
