CX2550/60/70 M4 Upgrade and Maintenance Manual 435
12.3.3 Installing the Omni-Path PHY card signal cable and
the Omni-Path PHY card sideband cable
12.3.3.1 Connecting the cables to the Omni-Path PHY card
Ê Remove the riser module, see section "Removing the riser module" on
page 58.

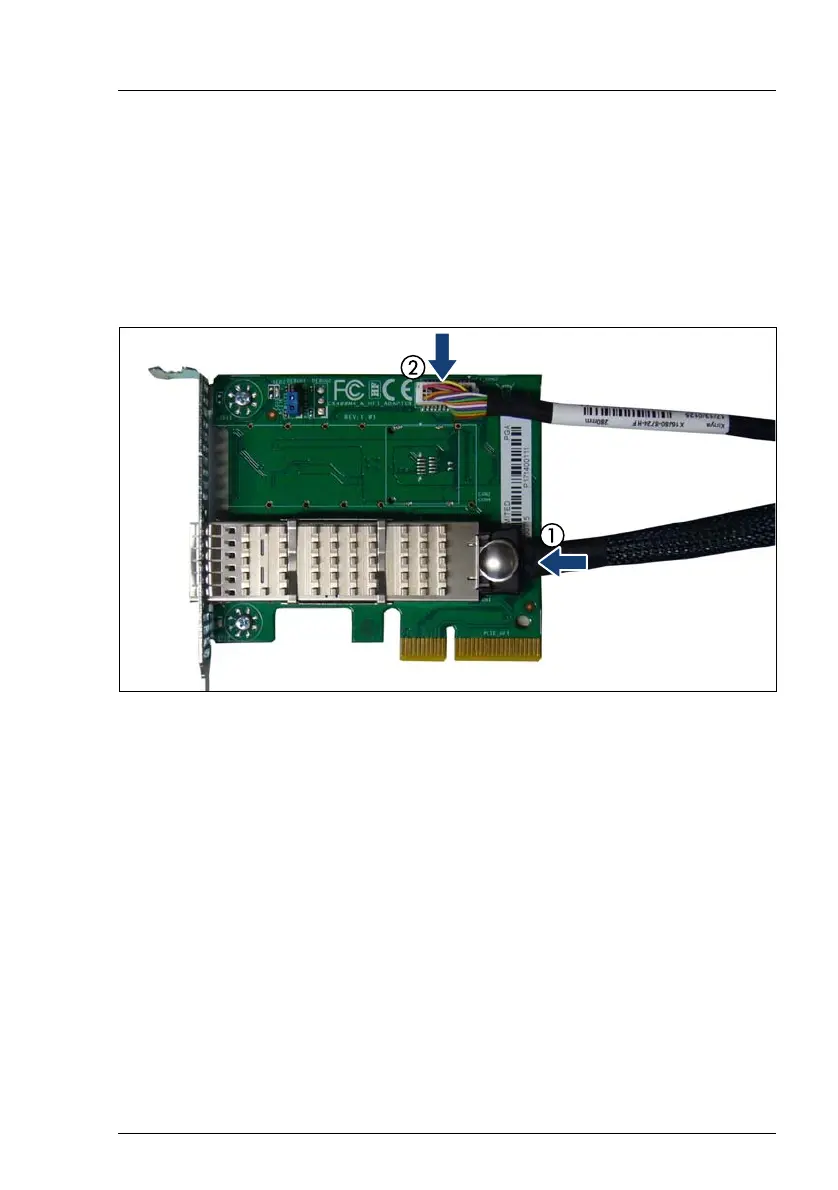

Figure 331: Connecting the cables to the Omni-Path PHY card
Ê Connect the plug of the Omni-Path PHY card signal cable to the Omni-Path
PHY card (1).
Ê Connect the Omni-Path PHY card sideband cable to the Omni-Path PHY
card (2).
Ê Install the controller to the riser module, see section "Mounting a controller
to the riser module" on page 120.
Ê Install the riser module, see section "Installing the riser module" on page 55.
